Arosa Mk2 2.0 16v (Common Rail)
Seat Arosa
Engine - 2.0 16v CR - CFHD
Gearbox - LNK - 02M 6 Speed Manual
Power Figures
633bhp (473kW) & 680Ft/lbs (922Nm) - With Nitrous
459.4bhp (343kW) & 500Ft/lbs (678Nm) - Diesel Only
Best Times
0-60mph (0-96.5kph) Time - 1.8s0-100mph (0-161kph) Time - 4.1s
0-150mph (0-241kph) Time - 9.46s
1/2 Mile Top Speed - 167.584mph (270 kph)
1/4 Mile - 9.4611s @ 150.55mph (243 kph) - 40% Nitrous
1/8 Mile - 6.1266s @ 118.69mph (192 kph) - 40% Nitrous
Quickest 60Ft - 1.4564
Fastest Terminal - 151.07
Weight - 820Kg
Engine
Stock Pistons with 1.5mm Valve Reliefs, Lowered Compression, Enlarged Oil Entry and Balanced to 0.2g
Gold Piston Coating
Rosten H-Beam Conrods
ARP Mains Studs
Darkside Ported Head
Darkside Developments Head Stud Kit
Oversize Inlet and Exhaust Valves
Darkside Upgraded Valve Springs
Performance / Race Camshafts
Pierburg CWA400 Electric Waterpump
TinyCWA Controller
Water Pump Blank Kit
Custom Alloy Radiator and Header Tank
Reverse Osmosis Water with HyperKuhl Additive
Castrol Radicool Coolant for Water Pump Lubrication
Darkside Custom Stainless V-Band Manifold
Borg Warner S300v from John Deere Combine - 4 BAR (60 PSI) Boost
Bonnet Exit Exhaust
Darkside Custom Inlet with 2.0L Plenum
5mm Insulating Inlet Gasket
Custom Vertical Flow Intercooler
Custom 63mm Alloy Pipework and Red Darkside Silicones
6 BAR MAP Sensor
CP3 Fuel Pump Conversion Kit
Wide Cambelt Conversion
Rail Pressure Regulator
2700 BAR Rail Pressure Sensor
Stage 3 Solenoid Injectors
Darkside Custom Front Mounted 6L Fuel Tank
FASS Fuel Systems 120 GPH Lift Pump
2 Micron Fuel Filter Kit for CP3 Fuel Pump
10 Row Fuel Cooler
WON Direct Port 500 Revo Nitrous Kit with Revomax V2 Controller
RockOil Carbon 10w50 Oil
19 Row Thermostatic Oil Cooler
Exhaust Manifold Pressure (EMP) Gauge Soot Trap
Transmission
Twin Plate Clutch Kit
ARP Flywheel Bolts
Quaife Limited Slip Differential
Genuine Diff Bearings, Shims and Seals
Genuine Input Shaft End Cap
Custom Driveshafts with Genuine CVs and GKN Race Grease
02M / 02Q Gearbox 4th Gear Input Shaft Support
02M / 02Q Steel 1st - 2nd Selector Forks
1st - 2nd Shifter Fork Reinforcement Kit
3rd - 4th Shifter Fork Reinforcement Kit
3rd - 4th CNC Machined Aluminium Selector Fork for 02M and 02Q
5th - 6th Shifter Fork Reinforcement Kit
Short Shift Kit
Solid Aluminium Bush Kit for VW 02M & 02Q Linkage Ends
Solid Aluminium Shifter Bracket Bushings for VW 02A, 02J, 02M, & 02Q Gearboxes
Rock Oil 75w90 Transmission Oil for 6 Speed 02M / 02Q
Chassis
Full MSA Spec Roll Cage with additional dash bar
Meister R Coilovers with custom valving and springs
Camber Adjustable Top Mounts
Lupo 3L Alloy Wishbones
Rose Jointed Rear Bush & Aluminium Front Bush
Custom Rose Jointed Back Axle Fixed to OE Position with Alloy Hubs
Vibra Technics Engine Mounts
Brakes
232mm Front Brakes with Alloy Calipers
EBC Green Stuff Pads
Hydraulic Handbrake
6 Pot Hyabusa Rear Calipers
Wheels and Tyres
VMS MODULO 13x10 4x100 ET20 Front Wheels
M&H 24"x 10" Wide Drag Tyres
VMS MODULO 15x3.5 4x100 ET10 Rear Skinnies
M&H 24" x 3.6" Runner Tyres
15" Steel Wheels with 225/50/15 ET Streets - TOTB
Exterior
Custom Wide Front Arches
Lupo GTi Aluminium Doors
Lupo 3L Aluminium Tailgate
Front Bumper Cut Out and Drilled for FMIC
Rear floorpan removed and replaced with aluminium diffuser
5mm Polycarbonate Front Screen - By Cab Glass
ACW Motorsport Polycarbonate Windows
Custom Roof spoiler
Interior
Cosworth / Pi Research Omega D4 Dash Data Logger
Interior stripped of all unnecessary material
Buddy Club Fibreglass Bucket Seat with Darkside Logo
4 Point TRS Harness
Dished Steering Wheel
Darkside Custom Wiring loom
Hewitt Industries Dual Boost Gauge
Previous Figures and Spec
Power Figures
550+bhp (411kW) & 650+Ft/lbs (882Nm) - With Nitrous
460.4bhp (344kW) & 500Ft/lbs (678Nm) - Diesel Only
Best Times
0-60mph (0-96.5kph) Time - 2.16s0-100mph (0-161kph) Time - 4.69s
0-150mph (0-241kph) Time - 9.75s
1/2 Mile Top Speed - 164.031mph (264 kph) - 30% Nitrous
1/4 Mile - 9.5521s @ 149.14mph (241 kph) - 80% Nitrous
1/4 Mile - 10.4908s @ 130.27mph (210 kph) - Zero Nitrous
1/8 Mile - 6.2441s @ 118.69mph (192 kph) - 80% Nitrous
Quickest 60Ft - 1.3786
Fastest Terminal - 149.14
Weight - 820Kg
Engine
As above with following differences:
Stage 2 Solenoid Injectors
WON Direct Port 350 Revo Nitrous Kit, 350 Solenoid, Revomax V2
Previous Figures and Spec
Power Figures
528.9bhp (395kW) & 680Ft/lbs (922Nm) - With Nitrous
406.1bhp (303kW) & 505Ft/lbs (685Nm) - Diesel Only
Best Times
0-60mph (0-96.5kph) Time - 2.26s0-100mph (0-161kph) Time - 4.76s
1/2 Mile Top Speed - 164.031mph (264 kph) - 30% Nitrous

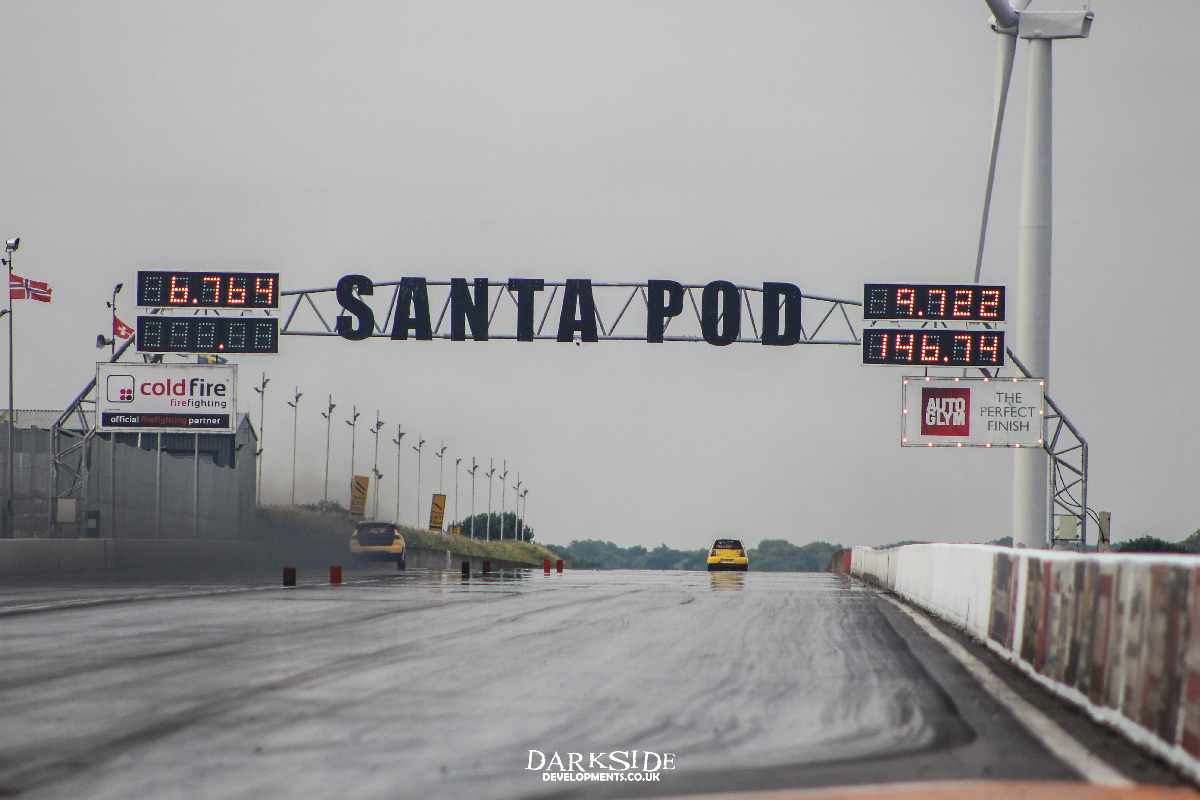

1/4 Mile - 9.7224s @ 146.74mph (237 kph) - 60% Nitrous
1/4 Mile - 10.4908s @ 130.27mph (210 kph) - Zero Nitrous
1/8 Mile - 6.4136s @ 116.26mph (188 kph) - 60% Nitrous
Quickest 60Ft - 1.5578
Fastest Terminal - 149.13
Weight - 785Kg
Engine
Stock Pistons with 1.5mm Valve Reliefs, Lowered Compression, Enlarged Oil Entry and Balanced to 0.2g
Gold Piston Coating
Rosten H-Beam Conrods
ARP Mains Studs
Darkside Ported Head
Darkside Developments Head Stud Kit
Oversize Inlet and Exhaust Valves
Darkside Upgraded Valve Springs
Performance / Race Camshafts
Pierberg CWA400 Electric Waterpump
TinyCWA Controller
Custom Alloy Radiator and Header Tank
Darkside Custom Stainless V-Band Manifold
Darkside GTD2872VR Ball Bearing Turbo
Darkside Custom Inlet with 2.0L Plenum
5mm Insulating Inlet Gasket
Darkside S3 Intercooler - Mounted upside down
Custom 63mm Alloy Pipework and Red Darkside Silicones
6 BAR MAP Sensor
CP3 Fuel Pump Conversion Kit
Rail Pressure Regulator
2700 BAR Rail Pressure Sensor
2000 BAR Solenoid Injectors
Darkside Custom Front Mounted 6L Fuel Tank
Fuelab 10303 Lift Pump
2 Micron Fuel Filter Kit for CP3 Fuel Pump
10 Row Fuel Cooler
WON 350hp Direct Port Revo NOS Kit, 350 Solenoid, Revomax V2
RockOil Carbon 10w50 Oil
19 Row Thermostatic Oil Cooler
Bonnet Exit Exhaust
Darkside Developments Custom Re-Map
Previous Figures and Spec
Engine - 1.9 8v PD - ARL
Gearbox - LNK - 02M 6 Speed Manual
Power Figures

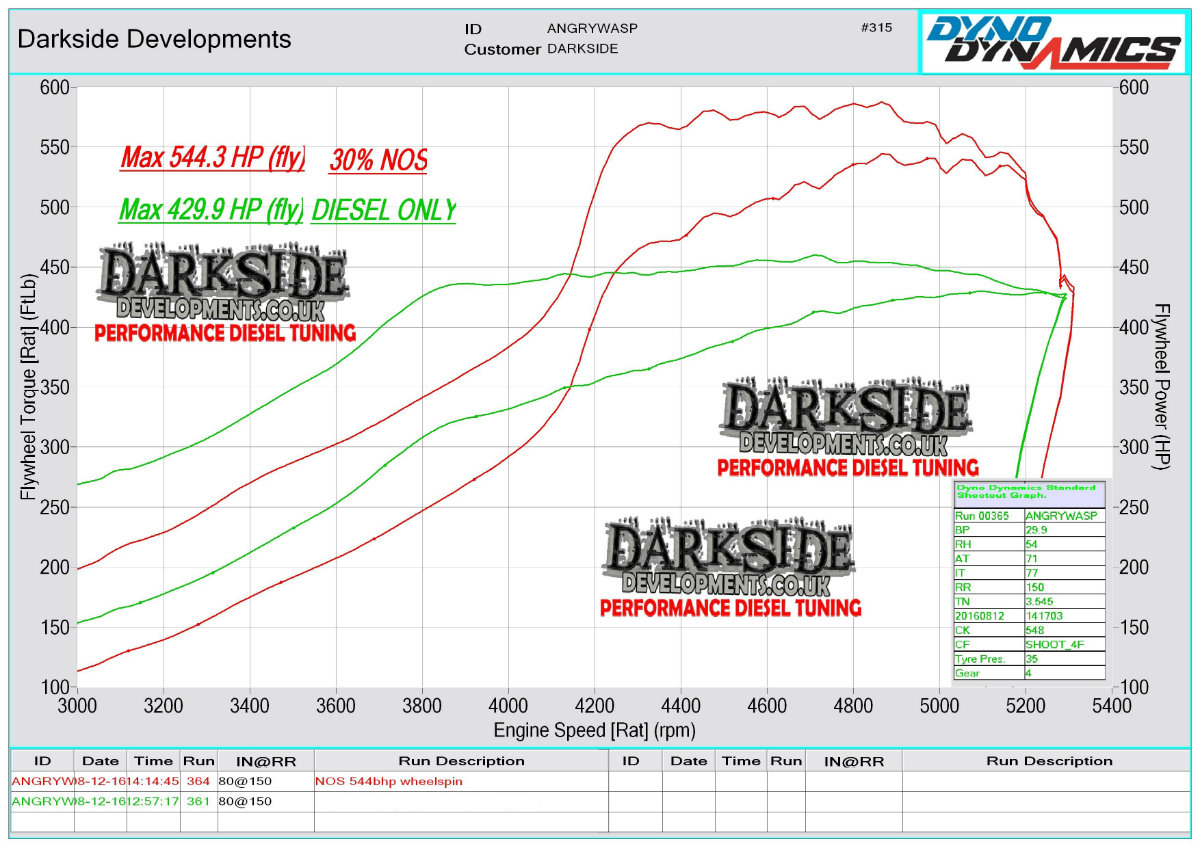

544bhp (406kW) & 580Ft/lbs (787Nm) - With Nitrous
429bhp (320kW) & 460Ft/lbs (624Nm) - Diesel Only
Best Times
0-60mph (0-96.5kph) Time - 2.8s0-100mph (0-161kph) Time - 5.94s
1/4 Mile - 9.9911s @ 142.14mph (229 kph)
Quickest 60Ft - 1.6062
Fastest Terminal - 148.48
Weight - 815Kg
Engine
Darkside Turbo Kit with GTB2566VK
Race PD Injectors with Firad +160% Nozzles
Race Camshaft Kit
Roston H-Beam Con Rods
Ported Head
Oversize Valves
Valve Cut Out in Pistons
Head Stud Kit
Universal FMIC
Darkside Custom Alloy Pipework
Custom Inlet Manifold
Darkside Custom Turbo Inlet Pipe
AEM DryFlow Air Filter
Water / Methanol Injection Kit
4 BAR MAP Sensor
Darkside Custom Alloy Pipework
Custom Alloy Radiator and Header Tank
MANN+HUMMEL ProVent Oil Catch Can
Bonnet Exit Exhaust
Darkside Developments Custom Re-Map
WON 350hp Direct Port Revo NOS Kit, 350 Solenoid, Revomax V2
Previous Figures and Spec
Engine - 2.0 16v PD - BKD
Gearbox - FJW - 02M 6 Speed Manual
Power Figures
507bhp (379kW) & 600Ft/lbs (814Nm) - With Nitrous
423bhp (316kW) & 530Ft/lbs (719Nm) - Diesel Only
Best Times
0-60mph (0-96.5kph) Time - 3.01s0-100mph (0-161kph) Time - 5.94s
1/4 Mile - 10.14s @ 148.8mph (240 kph)
Quickest 60Ft - 1.676
Fastest Terminal - 148.8
Weight - 825Kg
Engine
Darkside Developments GTB2566VK Turbo Kit with Tubular Stainless Manifold and 3" Downpipe
Universal FMIC
Darkside Custom Alloy Pipework
Custom Alloy Radiator and Header Tank
Custom Alloy TIP Pipe
AEM Dryflow Filter
Firad 120% Race Injectors
Darkside EGR Delete
4 BAR MAP Sensor
Rosten H-Beam Conrods
Head Stud Kit
ARP Mains Studs
Darkside Ported Head
MANN+HUMMEL ProVent Oil Catch Can
Bonnet Exit Exhaust
Darkside Developments Custom Remap with MAF and EGR Delete
WON 350hp Direct Port Revo NOS Kit, 350 Solenoid, Revomax V2
