Description

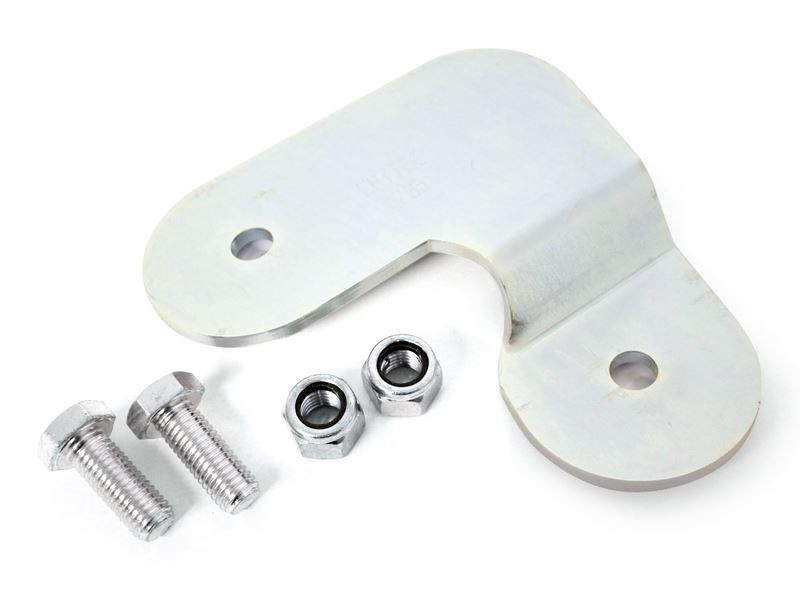

02M Gearbox Reinforcement Plate
Fits ALL VW / Audi / Seat and Skoda 6 Speed Manual 02M Gearboxes
One weaknesses of the 02M Gearboxes is the cast transmission casing. This can become a major problem especially on vehicles with high torque figures. The problem is caused by high amounts of vibration being transferred through the gears. These vibrations can eventually lead to cracks in the casing and in worst cases, can break away completely leaving a gaping hole in the end of the casing. Usually this destroys all the internals rendering the whole gearbox scrap.
This Reinforcement Plate has been specifically designed from S355 high-strength steel to prevent this from happening
After experiencing this problem first hand with a few of our high powered diesels (including the Arosa) we highly recommend this modification for vehicles running 400ft/lbs+ (for petrol and diesel applications)
Please see our listings for 02M / 02Q Gearbox 4th Gear Input Shaft Support and 02M / 02Q Steel Selector / Shifter Forks
To fit the following Engine Codes with the 02M 6 Speed Gearbox (Engine Codes can be found on a sticker on the Cam Belt Cover or in the Boot):
VW Golf Mk4 - AJM, AUY 115 / ASZ 130 / ARL 150
VW Bora / Jetta Mk4 - AJM, AUY 115 / ASZ 130 / ARL 150
VW Polo - ASZ, BLT 130
VW Sharan - ANU 90 / AUY 115 / ASZ 130 / BTB 150
Audi A3 8L - AJM, AUY 115 / ASZ 130 / ARL 150
Seat Leon 1M - AJM, AUY 115 / ASZ 130 / ARL 150
Seat Ibiza Mk4 - ASZ, BLT 130 / BPX, BUK 160
Seat Cordoba - ASZ, BLT 130
Seat Toledo - ASZ, BLT 130
Seat Alhambra - ANU 90 / AUY 115 / ASZ 130 / BTB 150
Skoda Octavia Mk1 - ASZ 130
Skoda Fabia vRS - ASZ, BLT 130
Ford Galaxy - ANU 90 / AUY 115 / ASZ 130 / BTB 150
If your model is not listed please ASK!
If your gearbox has the plastic end cap this will not fit These are part numbers
02M301211B
02M301211D
FITTING GUIDE - http://drksi.de/ReinforcementPlate
