Description
2.0 16v CR140 TDI CJAA CBEA 200hp Turbo Upgrade
This is a bolt on turbo upgrade for the US Spec 2.0 16v TDi CR140 CJAA and CBEA Engines. This turbo is capable of 195 - 205hp smoke free A Custom Remap will be required immediately after fitting. We also strongly recommend deleting the DPF at the same time as tuningInstallation Information:
This will not fit with the stock inlet pipe or low pressure EGR. The high pressure EGR port is also located on the opposite side as the stock turbocharger we would advise blanking the EGR and removing the DPF (see links below) To retain the stock EGR this turbocharger will require significant modification / additional custom parts to installTurbo Outlet Damper - Optional (See Below)
Turbo to Inlet (TIP) Pipe - (Required to keep the stock Airbox, MAF and Breather set up when upgrading a CR140)
2009 Jetta TDI and 2009 Sportwagen - Vehicles made before July 20th 2009 will require the 'Turbo Outlet Damper'
The outlet on this replacement turbo is NOT compatible with the OEM outlet dampener equipped on models made before July 20, 2009

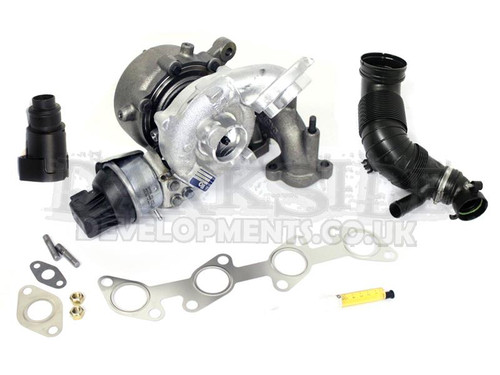

This Kit Consists of:
KKK / Borgwarner TurbochargerExhaust Manifold Gasket
EGR Gasket
Oil Return Gasket
2x Oil Return O-Rings
2x Studs
2x Nuts
1x EGT Spacer - Allows fitment your original probe with this turbo
Turbo Outlet Damper - Optional
Our DPF Delete Pipe is listed here:
Braided Oil Feed for this turbo is listed here:
EGR Blanking Plates:
https://www.darksidedevelopments.co.uk/products/egr-blanking-plate-for-turbo-egr-port.html
This Kit will fit the following Vehicles:
Audi A3 / S3 - CBEA (140)
VW Beetle - CJAA (140)
VW Beetle Cabrio - CJAA (140)
VW Bora - CBEA (140) CJAA (140)
VW Golf - CJAA (140)
VW Golf Variant - CJAA (140)
VW Jetta - CBEA (140) CJAA (140)
VW Jetta Variant - CBEA (140) CJAA (140)
VW Novo Fusca - CJAA (140)
VW Vento - CBEA (140) CJAA (140)
VW Vento Variant - CBEA (140) CJAA (140)
Replaces Genuine VW Part Numbers:
03L253010 - 03L 253 010 03L253016K - 03L253016 K - 03L 253 016 K03L253019N - 03L253019 N - 03L 253 019 N03L253056 - 03L 253 056 03L253056X - 03L253056 X - 03L 253 056 X
Replaces Borgwarner Turbocharger Part Numbers:
53039880208 - 5303 988 020853039700208 - 5303 970 0208
