BMW M47 / M57N / M57N2 EGR Delete / Race Pipe Retaining ASV

Darkside BMW 2.0 & 3.0 Diesel M47 / M57N / M57N2 Engines EGR Delete / Race Pipe Retaining ASV

Reduces Inlet Air Temperatures = More Power

Prevents Inlet and Turbo from Clogging up

Brushed Aluminium Finish

Made in the UK

This kit replaces the EGR Valve and fits neatly between the Anti Shudder Valve and Inlet Manifold. Retaining the ASV means the engine still remains smooth when switching off the ignition
Our EGR Delete Kit is machined from a Single Billet so there are no welds. This improves appearance and also strength. We have found that the kits from other suppliers crack due to the strain of the boost pipework hanging from the ASV, so we designed our item to overcome this problem
Our unique Grub Screw design allows for the neatest possible install, removing the bulky brass fitting found on other EGR Delete Kits. The tiny hole also eliminates the need to fit an 'in-line' reducer to stop the boost guage from fluttering under heavy load. The design also means that customers who will not be using the boost takeoff will have a clean looking install as our design is almost exactly the same profile as the standard EGR Valve, which allows all the stock fixings to be used

Please note that this is machined from one single piece as the pipe is under strain and welded pipes can crack

Please Note: Once the valve is either removed or blanked off the vehicles ECU will no longer get a signal from the EGR Valve causing the emmisions workshop light to appear on the dash board. We can remove this by reprogramming the EGR software on the ECU.

Kit Options:

EGR Delete - A Kit to remove the EGR (Exhaust Gas Recirculation) Valve ONLY, leaving the EGR / Exhaust Cooler in place

EGR & Cooler Delete - A complete kit that removed both the EGR (Exhaust Gas Recirculation) Valve & the EGR Cooler / Exhaust Cooler

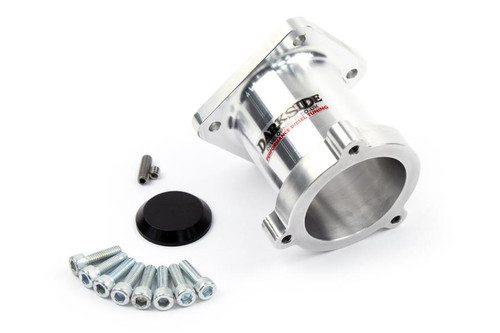

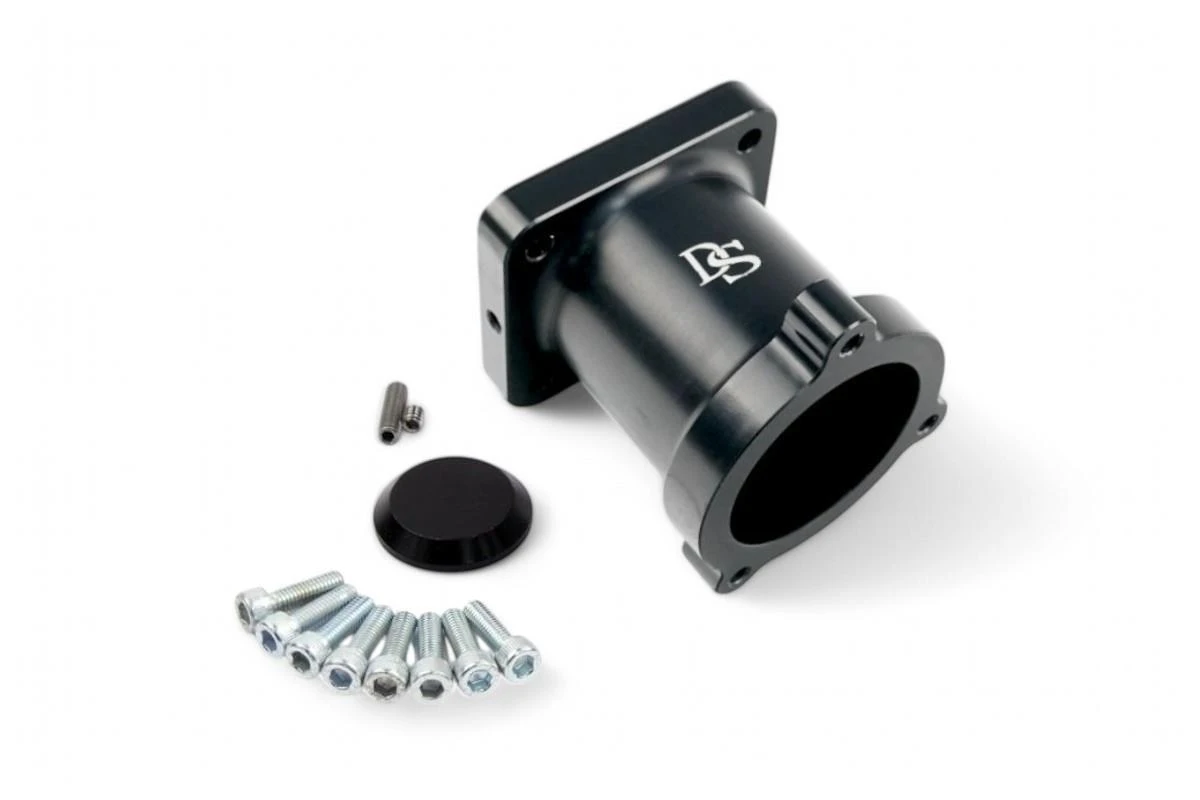

This Kit Consists of:

Darkside Developments Double Flange Race Pipe
Machined Cap (For Cooler Pipe)
4x M6 x 20mm BZP Bolts
Vented Grub Screw (Boost Guage Takeoff)
Grub Screw (To Block Boost Port)
EGR Blanking Plate & Gasket (EGR & Cooler Delete ONLY)
3x Blanking Plugs / Caps - (EGR & Cooler Delete ONLY)

For more information on EGR Valves and Removal see here

https://www.darksidedevelopments.co.uk/egr-removal-delete/

Series / Chassis:

E53 / E60 / E60N / E61 / E61N / E63N / E64N / E65 / E66 / E70 / E70N / E71 / E83 / E83N / E87 / E90 / E90N / E91 / E91N / E92 / E92N / E93

Model:

118d / 120d / 318d / 320d / 325d / 330d / 330xd / 335d / 520d / 525d / 525xd / 530d / 530xd / 535d / 635d / 730d / 730Ld / X3 / X5 / X6

Engines:

M47N2 / M57N / M57N2

This Kit will fit the following Vehicles:

E53 M57N X5 3.0d SAV
E60 M47N2 520d Saloon
E60 M57N 525d Saloon
E60 M57N 530d Saloon
E60 M57N 535d Saloon
E60 M57N2 530d Saloon
E60 M57N2 530xd Saloon
E60N M47N2 520d Saloon
E60N M57N2 525d Saloon
E60N M57N2 525xd Saloon
E60N M57N2 530d Saloon
E60N M57N2 530xd Saloon
E60N M57N2 535d Saloon
E61 M47N2 520d Touring
E61 M57N 525d Touring
E61 M57N 530d Touring
E61 M57N 535d Touring
E61 M57N2 530d Touring
E61 M57N2 530xd Touring
E61N M47N2 520d Touring
E61N M57N2 525d Touring
E61N M57N2 525xd Touring
E61N M57N2 530d Touring
E61N M57N2 530xd Touring
E61N M57N2 535d Touring
E63N M57N2 635d Coupe
E64N M57N2 635d Convertible
E65 M57N2 730d Saloon
E66 M57N2 730Ld Saloon
E70 M57N2 X5 3.0d SAV
E70 M57N2 X5 3.0sd SAV
E70 M57N2 X5 3.5d SAV
E70N M57N2 X5 35dX SAV
E71 M57N2 X6 30dX SAC
E71 M57N2 X6 35dX SAC
E83 M47N2 X3 2.0d SAV
E83 M57N2 X3 3.0d SAV
E83N M47N2 X3 2.0d SAV
E83N M57N2 X3 3.0d SAV
E83N M57N2 X3 3.0sd SAV
E87 M47N2 118d 5 doors
E87 M47N2 120d 5 doors
E90 M47N2 318d Saloon
E90 M47N2 320d Saloon
E90 M57N2 325d Saloon
E90 M57N2 330d Saloon
E90 M57N2 330xd Saloon
E90 M57N2 335d Saloon
E90N M57N2 325d Saloon
E90N M57N2 335d Saloon
E91 M47N2 318d Touring
E91 M47N2 320d Touring
E91 M57N2 325d Touring
E91 M57N2 330d Touring
E91 M57N2 330xd Touring
E91 M57N2 335d Touring
E91N M57N2 325d Touring
E91N M57N2 335d Touring
E92 M57N2 325d Coupe
E92 M57N2 330d Coupe
E92 M57N2 330xd Coupe
E92 M57N2 335d Coupe
E92N M57N2 335d Coupe
E93 M57N2 325d Convertible
E93 M57N2 330d Convertible

Replaces Genuine BMW EGR Valve Part Numbers:

11 71 8 517 217 - 11718517217 - 8 517 217 - 8517217
11 71 7 807 805 - 11717807805 - 7 807 805 - 7807805
11 71 7 804 382 - 11717804382 - 7 804 382 - 7804382
11 71 7 793 484 - 11717793484 - 7 793 484 - 7793484
11 71 7 804 352 - 11717804352 - 7 804 352 - 7804352

Replaces Genuine BMW EGR Cooler Part Number:

11 71 7 790 065 - 11717790065 - 7 790 065 - 7790065

Darkside Developments accepts no responsibility for the use of this part on the public highway where removal of emissions controls is prohibited. It is the customers responsibility to ensure they comply with rules and laws relating to their home country
