Description
Darkside Braided Oil Feed Line for 1.9 and 2.0 TDI
Braided Turbo Oil Feed Pipe / Line for VW Group 1.9 / 2.0 PD / PPD TDI Engines & 2.0 CR TDI Round Port Engines Fits ALL VW / Audi / Seat and Skoda Vehicles with the 1.9 and 2.0 TDI engine codes listed below PLEASE NOTE - THESE OIL FEEDS ARE SUPPLIED WITH RIGHT HAND THREAD BOLTS. IN SOME RARE CASES, VEHICLES WITH TOP MOUNTED TURBOCHARGERS WILL REQUIRE A LEFT HAND THREAD BANJO BOLT. WE WOULD ADVISE CHECKING YOUR BOLT THREAD BEFORE ORDERING IF YOUR VEHICLE HAS A TOP MOUNTED TURBOCHARGERWe offer Braided Oil Feeds for both the Transverse Engines and the Longditudinal Engines, Please select from the above options
This Kit Consists of:
Darkside Developments Braided Oil Feed Linex2 Banjo Bolts (transverse)
x4 Copper Washers (transverse)
x2 P-Clips
1x Oil Feed Turbo Threaded Fitting (longitudinal)
1x Banjo Bolt (longitudinal)
3x Copper Washers (longitudinal)
PLEASE NOTE - THESE OIL FEEDS ARE SUPPLIED WITH RIGHT HAND THREAD BOLTS. IN SOME RARE CASES, VEHICLES WITH TOP MOUNTED TURBOCHARGERS WILL REQUIRE A LEFT HAND THREAD BANJO BOLT. WE WOULD ADVISE CHECKING YOUR BOLT THREAD BEFORE ORDERING IF YOUR VEHICLE HAS A TOP MOUNTED TURBOCHARGER
We have the Left Hand Thread Banjo Bolt listed here:
Fitment Data
This item will fit the following Vehicles:
Transverse Oil Feed
Audi A3 / S3 - ALH (90) AGR (90) BKC (105) BXE (105) BLS (105) ASV (110) AHF (110) AZV (136) BKD (140) BMM (140) BMN (170)
Audi A3 Cabriolet - BLS (105)
Seat Alhambra - ASZ (131) BRT (140) BTB (150)
Seat Altea - BXF (90) BJB (105) BKC (105) BXE (105) BLS (105) AZV (136) BMM (140) BKD (140) BMN (170)
Seat Cordoba - AGR (90)
Seat Cordoba / Vario - BMS (80) AGR (90) BMT (100) ATD (100) AXR (101) BLT (131) ASZ (131)
Seat Ibiza - BMS (80) BXJ (90) AGR (90) BMT (100) ATD (100) AXR (101) BLS (105) BLT (131) ASZ (131)
Seat Leon - BXF (90) ALH (90) AGR (90) BKC (105) BXE (105) BLS (105) AHF (110) ASV (110) AZV (136) BKD (140) BMM (140) BMN (170)
Seat Toledo - BXF (90) ALH (90) AGR (90) BJB (105) BXE (105) BKC (105) BLS (105) AHF (110) ASV (110) AZV (136) BKD (140) BMM (140) BMN (170)
Skoda Fabia - BMS (80) ATD (100) AXR (101) BSW (105) BLS (105) BLT (131) ASZ (131)
Skoda Octavia - AGR (90) ALH (90) BKC (105) BJB (105) BXE (105) BLS (105) ASV (110) AHF (110) AZV (136) BKD (140) BMM (140) BMN (170)
Skoda Roomster - BMS (80) AXR (101) BSW (105) BLS (105)
Skoda Routan - BMS (80) AXR (101) BSW (105) BLS (105)
Skoda Superb - BXE (105) BLS (105) BMP (140) BKD (140)
VW Beetle - ALH (90)
VW Bora - AGR (90) ALH (90) BEW (100) BRM (103) BKC (105) BXE (105) ASV (110) AHF (110) AUY (115) AJM (115) BKD (140)
VW Caddy - BSU (75) BJB (105) BLS (105) BMM (140)
VW Campmobile T ype 2 / T2 - BRR (84) AXC (85) BRS (102) AXB (105)
VW Clasico / Jetta - ALH (90) BEW (100)
VW Derby - AGR (90)
VW Diesel Industrial Motor - CBHA (64) BJC (72) CBJB (75) AVM (86) CBKA (100)
VW Eos - BMM (140)
VW Golf - BRU (90) BXJ (90) BXF (90) AGR (90) ALH (90) BKC (105) BXE (105) BLS (105) AHF (110) ASV (110) AUY (115) AJM (115) BVB (131) AZV (136) BKD (140) BMM (140) BMN (170)
VW Golf Plus - BRU (90) BXJ (90) BXF (90) BKC (105) BXE (105) BLS (105) BEE (131) BVB (131) AZV (136) BKD (140) BMM (140)
VW Jetta - ALH (90) AGR (90) BEW (100) BRM (103) BKC (105) BXE (105) BLS (105) AHF (110) ASV (110) AUY (115) AJM (115) AZV (136) BKD (140) BMM (140) BMN (170)
VW Jetta Variant - ALH (90) AGR (90) BXE (105) AHF (110) ASV (110) AUY (115) AJM (115)
VW Passat / Variant - BKC (105) BLS (105) BXE (105) BWV (115) BWV (120) BVE (122) BMA (136) BKP (140) BMP (140) BUZ (163) BMR (170)
VW Polo - BWB (70) BMS (80) BMT (100) ATD (100) AXR (101) BLT (131) ASZ (131)
VW Polo Classic / Variant - AGR (90) ATD (100) BLT (131) ASZ (131)
VW Sharan - ASZ (131) BVH (136) BRT (140) BTB (150)
VW Touran - BRU (90) BXF (90) BXJ (90) AVQ (100) BKC (105) BXE (105) BLS (105) AZV (136) BKD (140) BMM (140) BMN (170)
VW Transporter Kombi - BRR (84) AXC (85) BRS (102) AXB (105)
VW Vento - BRM (103) BKC (105) BXE (105) BKD (140)
VW Vento Variant - BXE (105)
Audi A3 / S3 - BUY (163)
Audi A3 / S3 - BKC (105) BXE (105) BLS (105) ASZ (131) CBAA (136) AZV (136) CBEA (140) BMM (140) BKD (140) CBAB (140) BMN (170) CBBB (170)
Audi A3 Cabriolet - BLS (105) CBAA (136) CBAB (140)
Audi TT / TTS Coupe / Roadster - CBBB (170)
Seat Alhambra - ANU (90) AUY (115) BVK (115) ASZ (131) BRT (140) BTB (150)
Seat Altea - BXF (90) BKC (105) BXE (105) BLS (105) BJB (105) AZV (136) BKD (140) BMM (140) CEGA (170) BMN (170)
Seat Arosa - AMF (75)
Seat Cordoba / Vario - BNM (68) AMF (75) AAZ (75) BNV (80) BMS (80) ALE (90) AHU (90) 1Z (90) BMT (100) ATD (100) AXR (101) AFN (110) BLT (131) ASZ (131)
Seat Exeo - CAGC (120) CAGA (143) CAHA (170)
Seat Ibiza - BNM (68) AAZ (75) AMF (75) BMS (80) BNV (80) ALE (90) 1Z (90) BXJ (90) AHU (90) BMT (100) ATD (100) AXR (101) BLS (105) AFN (110) BLT (131) ASZ (131) ARL (150) BPX (160) BUK (160)
Seat Leon - BXF (90) AXR (101) BKC (105) BXE (105) BLS (105) ASZ (131) AZV (136) BMM (140) BKD (140) ARL (150) CEGA (170) BMN (170)
Seat Toledo - AAZ (75) ALE (90) 1Z (90) AHU (90) AXR (101) BJB (105) BKC (105) BXE (105) BLS (105) AFN (110) ASZ (131) AZV (136) BKD (140) BMM (140) ARL (150) CEGA (170) BMN (170)
Skoda Fabia - ASY (64) BNM (68) AMF (75) BMS (80) BNV (80) ATD (100) AXR (101) BSW (105) BLS (105) BLT (131) ASZ (131)
Skoda Octavia - ATD (100) AXR (101) BKC (105) BJB (105) BXE (105) BLS (105) ASZ (131) AZV (136) BKD (140) BMM (140) BMN (170) CEGA (170)
Skoda Roomster - BNM (68) BNV (80) BMS (80) AXR (101) BSW (105) BLS (105)
Skoda Routan - BNM (68) BMS (80) BNV (80) AXR (101) BLS (105) BSW (105)
Skoda Superb - BXE (105) BLS (105) BKD (140) BMP (140) CBBB (170)
Skoda Yeti - CBDB (140) CEGA (170)
VW Beetle - ATD (100) BEW (100) BSW (105) CJAA (140)
VW Beetle Cabrio - AXR (101) BSW (105) CJAA (140)
VW Bora - BEW (100) ATD (100) AXR (101) BRM (103) BKC (105) BXE (105) ASZ (131) CJAA (140) CBEA (140) BKD (140) ARL (150)
VW Caddy - BSU (75) ALE (90) AHU (90) 1Z (90) BJB (105) BLS (105) BMM (140)
VW Campmobile Type 2 / T2 - BRR (84) AXC (85) BRS (102) AXB (105)
VW Clasico / Jetta - AAZ (75) 1Z (90) AHU (90) BEW (100) AXR (101)
VW Eos - BMM (140) CBAB (140)
VW Fox - BNM (68)
VW Golf - AHU (90) BXF (90) 1Z (90) BEW (100) ATD (100) AXR (101) BKC (105) BXE (105) BLS (105) CBDC (110) AFN (110) ASZ (131) CBDA (136) CBAA (136) AZV (136) CBAB (140) CJAA (140) BKD (140) CBDB (140) BMM (140) ARL (150) CBBB (170) BMN (170)
VW Golf Cabriolet - JK (54) CY (70)
VW Golf Plus - BXJ (90) BRU (90) BXF (90) BKC (105) BXE (105) BLS (105) CBDC (110) CBDA (136) AZV (136) CBDB (140) BKD (140) BMM (140)
VW Golf Variant - AAZ (75) ALE (90) 1Z (90) AHU (90) AFN (110) CJAA (140)
VW Jetta - AHU (90) BEW (100) ATD (100) AXR (101) BRM (103) BKC (105) BXE (105) BLS (105) ASZ (131) CBDA (136) AZV (136) CBEA (140) CBDB (140) CJAA (140) BKD (140) BMM (140) ARL (150) CEGA (170) BMN (170)
VW Jetta Variant - BEW (100) ATD (100) AXR (101) BXE (105) ASZ (131) CBEA (140) CJAA (140) ARL (150)
VW Lupo - AYZ (61) ANY (61) AMF (75)
VW New Beetle - BEW (100) BSW (105)
VW Novo Fusca - CJAA (140)
VW Polo - BNM (68) BWB (70) BAY (75) AMF (75) BMS (80) BNV (80) BMT (100) ATD (100) AXR (101) BLT (131) ASZ (131)
VW Polo Classic / Variant - AMF (75) BNV (80) ALE (90) 1Z (90) AHU (90) ATD (100) AFN (110) ASZ (131)
VW Polo Sedan - BAY (75) AMF (75)
VW Scirocco - CBDB (140) CBBB (170)
VW Sharan - ANU (90) BVK (115) AUY (115) ASZ (131) BVH (136) BRT (140) BTB (150)
VW Tiguan - CBAA (136) CBAB (140) CBBA (163) CBBB (170)
VW Touareg - BKW (313) BWF (313) AYH (313) BLE (313) CBWA (350)
VW Touran - BRU (90) BXJ (90) BXF (90) AVQ (100) BKC (105) BLS (105) BXE (105) AZV (136) BKD (140) BMM (140) BMN (170)
VW Transporter Kombi - AXC (85) BRS (102) AXB (105)
VW Vento - AAZ (75) ALE (90) AHU (90) 1Z (90) BRM (103) BKC (105) BXE (105) AFN (110) CJAA (140) CBEA (140) BKD (140)
VW Vento Variant - BXE (105) CBEA (140) CJAA (140)
Audi A3 / S3 - CBAA (136) CBEA (140) CBAB (140) CBBB (170)
Audi A3 Cabriolet - CBAA (136) CBAB (140)
Audi TT / TTS Coupe / Roadster - CBBB (170)
Seat Altea - CEGA (170)
Seat Leon - CEGA (170)
Seat Toledo - CEGA (170)
Skoda Octavia - CEGA (170)
Skoda Superb - CBBB (170)
Skoda Yeti - CBDB (140) CEGA (170)
VW Beetle - CJAA (140)
VW Beetle Cabrio - CJAA (140)
VW Bora - CJAA (140) CBEA (140)
VW Diesel Industrial Motor - CJDA (102) CJDD (102)
VW Eos - CBAB (140)
VW Golf - CBDC (110) CBDA (136) CBAA (136) CBDB (140) CBAB (140) CJAA (140) CBBB (170)
VW Golf Plus - CBDC (110) CBDA (136) CBDB (140)
VW Golf Variant - CJAA (140)
VW Jetta - CBDA (136) CBEA (140) CBDB (140) CJAA (140) CEGA (170)
VW Jetta Variant - CBEA (140) CJAA (140)
VW Novo Fusca - CJAA (140)
VW Passat / Variant - CBDC (110) CBAA (136) CBAB (140) CBAC (143) CBBB (170)
VW Passat CC - CBAA (136) CBAB (140) CBAC (143) CBBB (170)
VW Scirocco - CBDB (140) CBBB (170)
VW Tiguan - CBAA (136) CBAB (140) CBBA (163) CBBB (170)
VW Vento - CBEA (140) CJAA (140)
VW Vento Variant - CBEA (140) CJAA (140)
Longditudinal Oil Feed:
Audi A4 / Avant - AVB (100) BKE (115) AJM (115) BRB (116) CAGC (120) BVG (121) BVF (126) AWX (131) AVF (131) BNA (136) BRF (136) CAGB (136) BRE (140) BPW (140) BLB (140) CMEA (143) CAGA (143) BVA (163) CAHB (163) BRD (170) CAHA (170)
Audi A4 / S4 / Avant / quattro - AVB (100) ATJ (115) BKE (115) BRB (116) CAGC (120) BVG (121) BVF (126) AVF (131) AWX (131) BNA (136) BRF (136) CAGB (136) BPW (140) BRE (140) BLB (140) CAGA (143) CMEA (143) BVA (163) CAHB (163) BRD (170) CAHA (170)
Audi A4 / S4 Cabriolet / quattro - BPW (140)
Audi A4 allroad quattro - CAGB (136) CAGA (143) CAHB (163) CAHA (170)
Audi A5 / S5 Cabriolet - CAHB (163) CAHA (170)
Audi A5 / S5 Coupe Sport - CAGB (136) CMEA (143) CAGA (143) CAHB (163) CAHA (170)
Audi A6 / Avant - AJM (115) BVG (121) AWX (131) AVF (131) BRF (136) BNA (136) CAGB (136) BRE (140) BLB (140) CAHB (163) CAHA (170)
Audi A6 / S6 / Avant / quattro - BVG (121) AVF (131) AWX (131) BRF (136) BNA (136) CAGB (136) BRE (140) BLB (140) CAHB (163) CAHA (170)
Audi Q5 - CAGB (136) CAGA (143) CAHB (163) CAHA (170)
Seat Exeo - CAGC (120) CAGA (143) CAHA (170)
Skoda Superb - AVB (100) AVF (131) AWX (131)
VW Passat / Variant - AVB (100) ATJ (115) AJM (115) AVF (131) AWX (131) BHW (136) BGW (136)
VW Passat syncro - ATJ (115)
Audi A4 / S4 Cabriolet / quattro - BRC (136)
Skoda Superb - BSV (105) BPZ (116) BWW (124) BSS (140)
VW Passat / Variant - BPZ (116)
Replaces Genuine VW Part Numbers (Transverse):
038145771AA - 038145771 AA - 038 145 771 AA038145771N - 038145771 N - 038 145 771 N045115677A - 045115677 A - 045 115 677 AN0208192 - N0208192 - N02 081 92 038145771N - 038145771 N - 038 145 771 N
038145771 - 038 145 771 038145771AE - 038145771 AE - 038 145 771 AE038145771AG - 038145771 AG - 038 145 771 AG038145771AH - 038145771 AH - 038 145 771 AH038145771B - 038145771 B - 038 145 771 B038145771D - 038145771 D - 038 145 771 D038145771G - 038145771 G - 038 145 771 G038145771H - 038145771 H - 038 145 771 H038145771R - 038145771 R - 038 145 771 R03G145771G - 03G145771 G - 03G 145 771 G03G145771H - 03G145771 H - 03G 145 771 H03G145771J - 03G145771 J - 03G 145 771 J03G145771Q - 03G145771 Q - 03G 145 771 Q03G145771R - 03G145771 R - 03G 145 771 R038145771G - 038145771 G - 038 145 771 G038145771AG - 038145771 AG - 038 145 771 AG03G145771Q - 03G145771 Q - 03G 145 771 Q03G145771R - 03G145771 R - 03G 145 771 R03G145771J - 03G145771 J - 03G 145 771 J038145771AH - 038145771 AH - 038 145 771 AH038145771H - 038145771 H - 038 145 771 H
Replaces Genuine VW Part Numbers (LONGITUDINAL):
038145771E - 038145771 E - 038 145 771 E038145771L - 038145771 L - 038 145 771 L038145771Q - 038145771 Q - 038 145 771 Q03G145771B - 03G145771 B - 03G 145 771 B03L145771A - 03L145771 A - 03L 145 771 A03L145807 - 03L 145 807 038145771L - 038145771 L - 038 145 771 L03G145771B - 03G145771 B - 03G 145 771 B03L145771A - 03L145771 A - 03L 145 771 A
Banjo Sizes:
Turbo Side - M10 x 1.0
Oil Filter End - M12 x 1.5
Factory oil feed torque setting do not apply to this part. A slight nip on the copper o-rings should be sufficent to seal. If a slight leak occures nip again. This should not exceed around 15 ft/lbs
Total Length (End to End) - 735mm

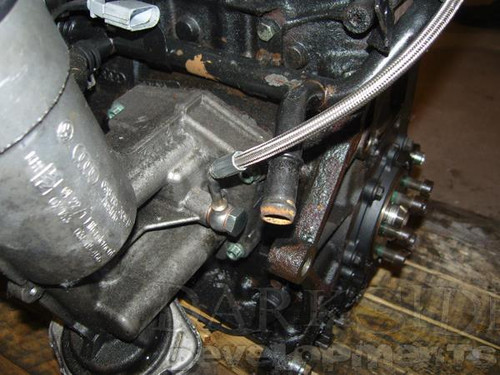

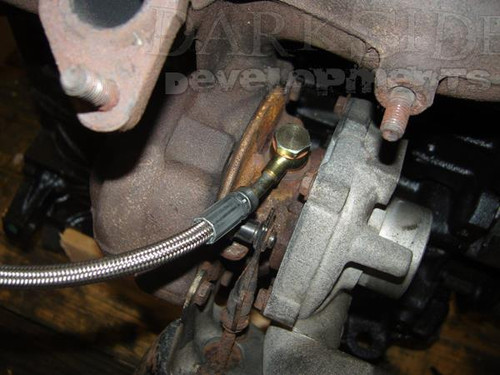

This Oil Feed line is designed to replace the standard hard line found on the 1.9 and 2.0 TDI VW Group Engines. It will fit with the stock turbocharger but is particularly useful if you have changed turbochargers and the stock oil line doesn't quite fit. We use these on our GTB Turbo Kits

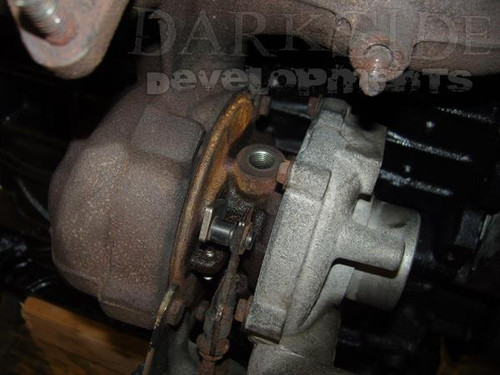

These are much improved on the standard design as it eliminates the taper fitting on the turbo end, which usually gets damaged when removed, requiring a complete new Oil Feed from VW. This hose can be used multiple times without any issues
