Description
Darkside Front Mounted Engine Oil Cooler Kit for 2.0 TDI Mk7 Platform Engines
Darkside Oil Cooler with all fittings and hose required to fit on most Mk7 Platform 2.0 TDI 16v TDI Engines Oil Coolers are an important addition to high performance engines. Engine Oil can easily overheat causing it to becomes thinner and offer less protection to vital engine parts, resulting in premature engine wear This kit includes universal brackets allowing the cooler to be mounted where best suitable. It needs to be fitted in a position where airflow can easily pass through, such as the front of the car by the radiator or fog lights. The Universal brackets can be cut or bent to allow fitment in the correct place Our take off plate replaces the stock heat exchange unit allowing fitment of an external oil cooler and whilst still circulating the coolant.Oil Cooler Specifications:

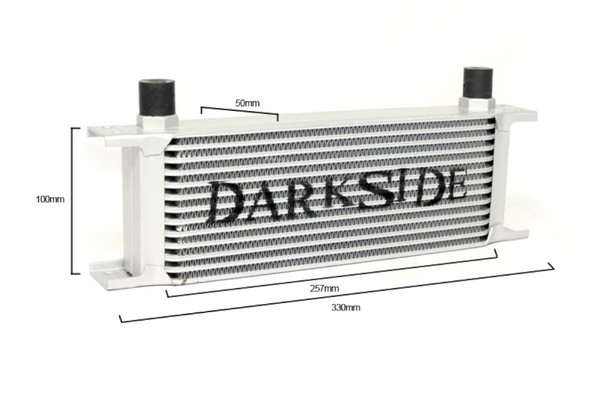

Max Pressure 10 BAR (145psi) -10 ROW - W (Overall) - 330mm / W (Core) - 257mm x H - 100mm x D - 50mm
Max Pressure 10 BAR (145psi) - 13 ROW - W (Overall) - 330mm / W (Core) - 257mm x H - 75mm x D - 50mm
THIS KIT CONSISTS OF:
Oil Cooler - 10 or 13 RowOil Cooler Take Off Plate
4 x Straight Connectors
4 x 90 Push Fit Connectors
4m of Push Fit Hose
4 x Jubilee Clamps
Universal Bracket Kit
Fitment Data
This Kit will fit the following Vehicles:
Audi A1 - CXMA (115)
Audi A3 / S3 - CLHA (105) CXXB (110) CRKB (110) CRFC (143) CRUA (150) DBGA (150) DEJA (150) CRLB (150) CRBC (150) CUNA (184)
Audi A3 Cabriolet - CXXB (110) CRKB (110) CRLB (150) CUNA (184)
Audi Q2 - CRFC (143)
Audi Q3 - CUVC (150) CUWA (184)
Audi TT / TTS Coupe / Roadster - CUNA (184)
Seat Alhambra - DFLD (115) CUVA (115) DFLA (150) CUVC (150) DFMA (184) CUWA (184)
Seat Leon - CLHB (90) CXXA (90) CLHA (105) CRVA (110) CXXB (110) CRKB (110) CRVC (143) CRBC (150) CRMB (150) CKFC (150) CRLB (150) CUPA (184) CUNA (184)
Seat Toledo - CXMA (115)
Skoda Octavia - CXXA (90) CLHB (90) CLHA (105) CXXB (110) CRVC (143) CYKA (150) CRMB (150) CKFC (150) CUNA (184) CUPA (184)
Skoda Rapid - CXMA (115)
Skoda Superb - DCXA (120) CRLB (150) DFCA (190) DDAA (190)
Skoda Yeti - DFSA (110) CUUA (110) DFSB (150) CUUB (150)
VW Beetle - CUUA (110) CVCA (150) DELA (150) CUUB (150)
VW Beetle Cabrio - CUUA (110) DELA (150) CVCA (150) CUUB (150)
VW Caddy - DFSF (75) DFSC (75) CUUF (75) DFSD (102) CUUD (102) DFSE (122) CUUE (122) DFSB (150) CUUB (150)
VW CC - CUVC (150) CUWA (184)
VW Golf - CXXA (90) CRKA (90) CLHB (90) CLHA (105) CRLD (110) CRVA (110) CXXB (110) CYKB (110) CRKB (110) CRVC (143) CRUA (150) DEJA (150) CRBC (150) CKFC (150) CRLB (150) CRGA (177) CUNA (184)
VW Golf Cabriolet - CUUA (110) CUUB (150)
VW Golf Sportsvan - CXXA (90) CRKA (90) CRLD (110) CRVA (110) CXXB (110) CRKB (110) CRLB (150)
VW Golf Variant - CRUA (150) DEJA (150) CUNA, DGCA (184)
VW Jetta - CUUA (110) DELA (150) CVCA (150) CUUB (150)
VW Novo Fusca - CUUA (110) DELA (150) CVCA (150) CUUB (150)
VW Passat / Variant - CRLD (110) DCXA (120) DCZA (120) DEKA (150) DFGA (150) CVCA (150) DBGA (150) DFEA (150) CRLB (150) CRGA (177) CUPA (184) DDAA (190) DFCA (190)
VW Scirocco - CUUB (150) CUXA (184) CUWA (184)
VW Sharan - DFLD (115) CUVA (115) DFLA (150) CUVC (150) DFMA (184) CUWA (184)
VW Tiguan - CUVE (110) CRFD (143) CUVC (150) CUWA (184)
VW Touran - CYKB (110) DFEB (110) CRVA (110) CRKB (110) DFEA (150)
VW Vento - CUUA (110) DELA (150) CVCA (150) CUUB (150)
VW Campmobile Type 2 / T2 - CXGB (102) CXHB (114) CXHA (150) CXFA (150) CXEB (204)
VW Transporter Kombi - CXGA (84) CXGB (102) CXHB (114) CXFA (150) CXHA (150) CXEB (204)
This will also fit the following petrol engines:
Audi A3 / S3 - CRFA (110) CRBD (136) CRLC (136)
Audi A3 Cabriolet - CRLC (136) CUNA, DGCA (184)
Audi Q3 - DFTC (120) CUVD (120) DFTB (136) CUVB (136) DBBA (150) DFTA (150) CYLA (184) DFUA (184)
Skoda Octavia - CKFB (143)
Skoda Superb - CFEA (115)
Fits Genuine VAG Oil Filter Housing Part Numbers:
03N115389A - 03N115389 A - 03N 115 389 A
03N115389B - 03N115389 B - 03N 115 389 B
03N115389P - 03N115389 P - 03N 115 389 P
03N115389K - 03N115389 K - 03N 115 389 K
Replaces Genuine Heat Exchanger Part Number:
03N117021 - 03N 117 021
