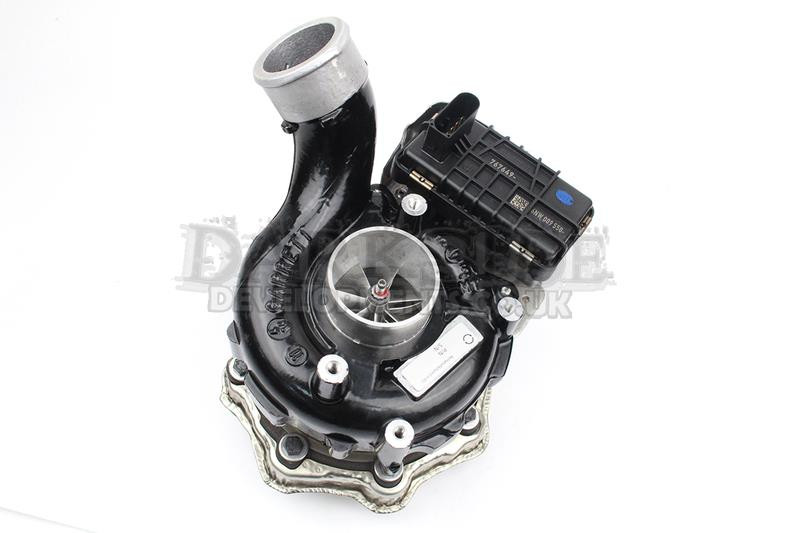

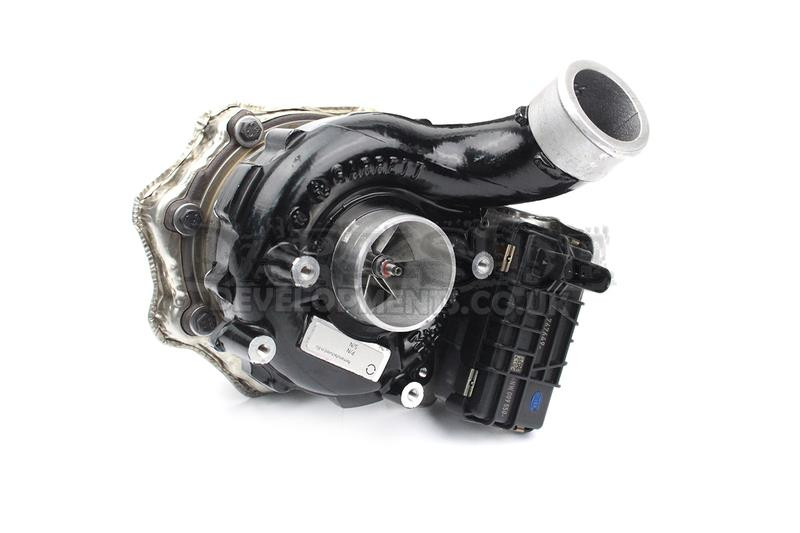

Darkside GTD2872VRK Billet Hybrid with Electronic Actuator

Garrett Turbocharger Fully Rebuilt with the Latest GTD VNT System, Ball Bearings, Custom Billet Compressor Wheel, Upgraded Turbine Wheel and Electronic Actuator

PLEASE NOTE - THE ELONGATED FLANGE TURBO IS SUPPLIED WITH A TIP SILICONE (FOR B8 PLATFORM VEHICLES)

THE EVEN SPACED TURBO IS NOT SUPPLIED WITH A TIP SILICONE. A CUSTOM TIP SILICONE MAY BE REQUIRED FOR THESE MODELS

Increase in performance

Will out perform any of the common Hybrid Turbos

Maintain economy and drivability

Quicker spool and lower manifold pressures at high RPMs

Low EMP's when running High Boost Pressures

European Made (No Chinese Parts)

Our new GTD2872VRK (Electronic) is the ultimate Turbo choice for the all the 2.7 & 3.0 TDI Engines!
This turbocharger is also the replacement for the now discontinued GTB2566VK
Although the upgrade sounds an extreme step up from the GTB2260VK the latest (Generation 5) GTD VNT System, Ball Bearings and Wheel Designs will out perform and spool quicker that the previous GTB2566VK
This is a direct replacement for the stock Garrett GTB1756VK and GTB2260VK Turbochargers. (This does not replace the earlier Borgwarner Turbochargers)
Our GTD2872VRK Hybrid offers the largest wheels that can be fitted into the GTB2260VK shell and work effectively
This is the same size turbo used on our Seat Arosa and proven to produce over 400bhp (Without Nos) and over 500bhp (With Nos) with the right supporting modifications.

SHIPPING WEIGHT:

The approximate shipping weight of this turbo is 16kg.

Here is a comparison of the various wheel sizes of the popular turbochargers, alongside the GTB and GTD Series turbochargers. Bare in mind that the GTD turbos have the latest 5th Generation VNT System, which is far superior to the previous systems, resulting in quicker spool and lower manifold pressures at high RPMs compared to older Gen Turbo's

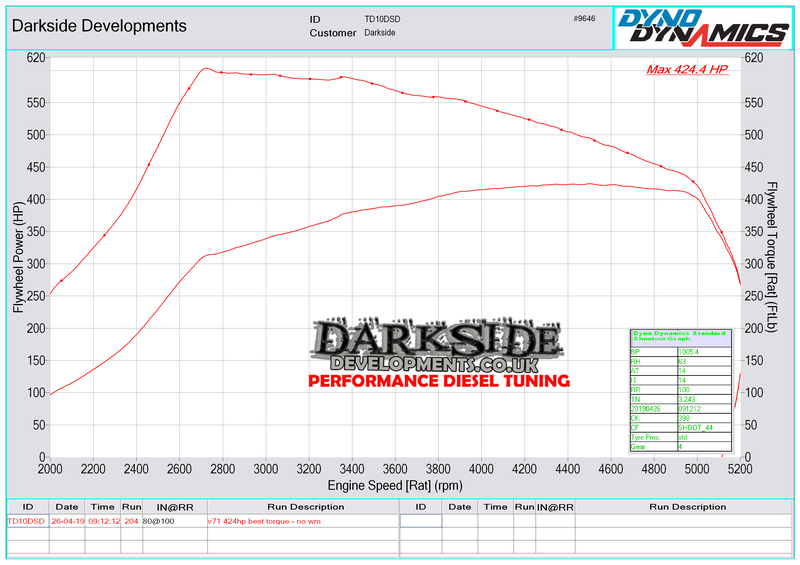

Above is also a rough guide to what sort of power you can expect from each turbo, with a comparison to other popular turbochargers. This is assuming you have the appropriate supporting modifications for the individual turbocharger. The power figures are what is considered achievable under 'safe' parameters (Injection Duration, Exhaust Gas Temperature and Exhaust Manifold Pressures). Greater power has been achieved in the past with each setup, but in many cases this was pushing many of the components past their safe operating limits

Fitment

Please include in the notes section what vehicle and manifold the turbocharger will be fitted with. We will the orientate the turbo correctly to suit your needs
Please Note: The rotation of the turbine housing cannot be changed once we have set up the turbo
We also produce Turbo Kits for several VAG TDI Models that allow these turbochargers to bolt directly onto your Engine with minimal modifications - https://www.darksidedevelopments.co.uk/darkside-turbo-kits/

Lead Time

Please expect around a 6 week lead time on these turbochargers unless otherwise discussed

This Item Will Fit the Following B8 Platform Vehicles (ELONGATED FLANGE):

Audi A4 / Avant - CGKB (163) CAMB (163) CGKA (190) CAMA (190) CCWB (211) CCLA (239) CCWA (239) CAPA (240)

Audi A4 / S4 / Avant / quattro - CAMB (163) CGKB (163) CAMA (190) CGKA (190) CCWB (211) CCLA (239) CCWA (239) CAPA (240)

Audi A4 allroad quattro - CCWA (239)

Audi A5 / S5 Cabriolet - CGKB (163) CGKA (190) CCWA (239)

Audi A5 / S5 Coupe Sport - CAMB (163) CGKB (163) CGKA (190) CAMA (190) CCWB (211) CCWA (239) CAPA (240)

Audi Q5 - CCWB (211) CCWA (239)

This Item Will Fit the Following Vehicles (EVEN SPACED FLANGE):

Audi A6 / Avant - CAND (163) CANC (190) CANA (190)

Audi A6 / S6 / Avant / quattro - CAND (163) CANC (190) CANA (190)

Audi A6 allroad quattro - CAND (163) CANC (190)

Audi A6L - CANA (190)

Audi A6 / Avant - CANB (163)

Audi A6 / S6 / Avant / quattro - CANB (163)

Audi Q7 - CATA (224)

VW Touareg - CATA (224)

Audi A6 / Avant - CDYB (211) CDYC (239) CDYA (239)

Audi A6 / S6 / Avant / quattro - CDYB (211) CDYC (239) CDYA (239)

Audi A6 allroad quattro - CDYB (211) CDYC (239) CDYA (239)

Audi Q7 - CASB (211) CCMA (239) CASA (240)

VW Phaeton - CARA (234) CEXA (239) CEXB (245)

VW Touareg - CASD (204) CASB (211) CASC (239) CASA (240)

As fitted to the following 3.0 V6 TDI 240PS Engines:

Upgrade for Genuine VW GTB2260VK Turbo Part Numbers (Elongated Flange):

059145654AL - 059145654 AL - 059 145 654 AL
059145721B - 059145721 B - 059 145 721 B
059145721G - 059145721 G - 059 145 721 G
059145721H - 059145721 H - 059 145 721 H
059145721L - 059145721 L - 059 145 721 L
059145722K - 059145722 K - 059 145 722 K
059145722L - 059145722 L - 059 145 722 L
059145722S - 059145722 S - 059 145 722 S

Upgrade for Genuine Garrett GTB2260VK Turbocharger Part Numbers (Elongated Flange):

776469-5 - 776469-0005 - 776469-0005S - 776469-5005 - 776469-5005S
776469-4 - 776469-0004 - 776469-0004S - 776469-5004 - 776469-5004S
769705-8 - 769705-0008 - 769705-0008S - 769705-5008 - 769705-5008S
769705-7 - 769705-0007 - 769705-0007S - 769705-5007 - 769705-5007S
769705-6 - 769705-0006 - 769705-0006S - 769705-5006 - 769705-5006S

Upgrade for Genuine VW GTB1756VK Turbocharger Part Numbers (Elongated Flange):

059145721B - 059145721 B - 059 145 721 B
059145721G - 059145721 G - 059 145 721 G
059145721H - 059145721 H - 059 145 721 H
059145721L - 059145721 L - 059 145 721 L

Upgrade for Genuine Garrett GTB1756VK Turbocharger Part Numbers (Elongated Flange):

777159-2 - 777159-0002 - 777159-0002S - 777159-5002 - 777159-5002S
777159-3 - 777159-0003 - 777159-0003S - 777159-5003 - 777159-5003S

Upgrade for Genuine VW GTB2260VK Turbo Part Numbers (Even Spaced Flange):

059145722J - 059145722 J - 059 145 722 J
059145722M - 059145722 M - 059 145 722 M
059145722R - 059145722 R - 059 145 722 R

Upgrade for Genuine Garrett GTB2260VK Turbocharger Part Numbers (Even Spaced Flange):

776470-3 - 776470-0003 - 776470-0003S - 776470-5003 - 776470-5003S
776470-1 - 776470-0001 - 776470-0001S - 776470-5001 - 776470-5001S

Upgrade for Genuine VW GTB2056VK Turbocharger Part Numbers (Even Spaced Flange):

059145873F - 059145873 F - 059 145 873 F

Upgrade for Genuine Garrett GTB2056VK Turbocharger Part Numbers (Elongated Flange):

783762-5002S - 7837625002S

Upgrade for Genuine VW GTB1756VK Turbocharger Part Numbers (Even Spaced Flange):

059145721D - 059145721 D - 059 145 721 D

Upgrade for Genuine Garrett GTB1756VK Turbocharger Part Numbers (Even Spaced Flange):

777162-1 - 777162-0001 - 777162-0001S - 777162-5001 - 777162-5001S
