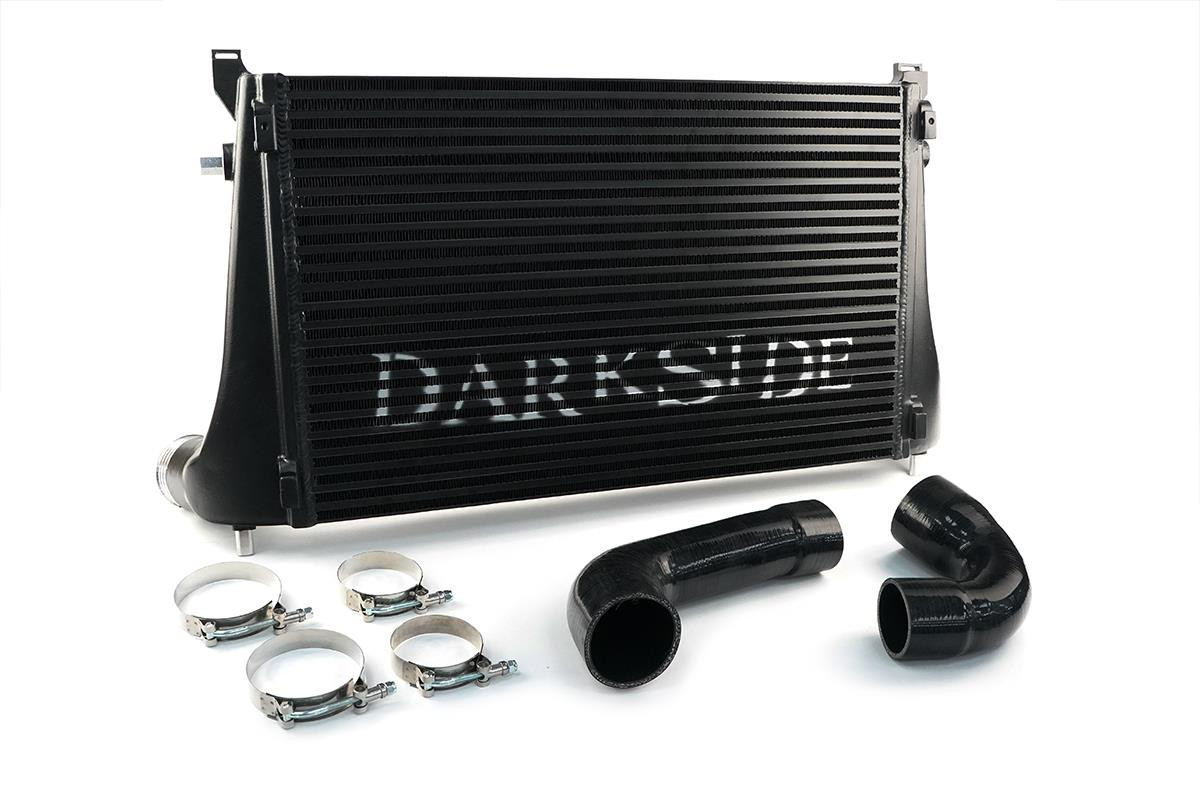

Darkside Uprated Front Mount Intercooler for Mk7 TFSI / TSI MQB Platform

Darkside Uprated Front Mount Intercooler for Petrol TFSI MQB Mk7 Platform Vehicles

This is an upgraded version of the OE Intercooler found on the TFSI MQB Platform Vehicles

Benefits over Stock Intercooler

Alloy End Tanks with Improved Flow

TIG Welded Construction

Larger Inlet and Outlet

Silicone Hoses Included

Intercooler Core Size:

400mm x 640mm x 65mm - 73mm Inlet / Outlet

Fitment for 5Q0145803AE Part Number:

If you have OE Intercooler part number 5Q0 145 803 AE, this will NOT be a straight replacement and modification is required to install. (Please see photos below)



As you can see the original radiator may not sit flush with the clip connector at the bottom, in order for this to sit correctly, some trimming to either the intercooler or radiator is required.

This Kit Consists of:

1x Uprated Intercooler
2x Silicone Hoses
4x T-Bolt Clamps

This Kit will fit the following Vehicles:

Skoda Octavia

Skoda Superb

VW Diesel Industrial Motor

Audi A3 / S3 - CJSA (180) CJSB (180) CNTC (220) CHHB (220)

Audi A3 Cabriolet - CNSB (170) CJSA (180) CNTC (220)

Audi TT / TTS Coupe / Roadster - CJSA (180) CJSB (180) CNTC (220) CHHC (230)

Seat Leon - CJSB (180) CJSA (180)

VW Golf - CNSA (170) CXBA (170) CXBB (170) CNSB (170) CJSB (180) CXCA (210) CNTA (211) CXCB (220) CXDA (220) CHHB (220) CHHA (230)

VW Golf Variant - CXBA (170) CXBB (170)

VW Passat / Variant - CJSC (180) CJSA (180) CHHB (220) CXDA (220)

VW Tiguan - CZPA (180) CHHB (220)

VW Touran - CJSA (180)

Replaces Genuine VW Part Numbers:

5Q0145803AB - 5Q0145803 AB - 5Q0 145 803 AB
5Q0145803H - 5Q0145803 H - 5Q0 145 803 H
5Q0145803K - 5Q0145803 K - 5Q0 145 803 K
5Q0145803N - 5Q0145803 N - 5Q0 145 803 N
5Q0145803R - 5Q0145803 R - 5Q0 145 803 R
5Q0145803T - 5Q0145803 T - 5Q0 145 803 T
5QM145803 - 5QM 145 803
5QM145803B - 5QM145803 B - 5QM 145 803 B
5QM145803E - 5QM145803 E - 5QM 145 803 E
5Q0145803AD - 5Q0145803 AD - 5Q0 145 803 AD
