EGR Blanking Plate (for Turbo EGR Port)

SKU:
DSD1245.2
Shipping:
Calculated at Checkout
  • EGR Blanking Plate (for Turbo EGR Port)
  • EGR Blanking Plate (for Turbo EGR Port)
  • EGR Blanking Plate (for Turbo EGR Port)
  • EGR Blanking Plate (for Turbo EGR Port)
  • EGR Blanking Plate (for Turbo EGR Port)
  • EGR Blanking Plate (for Turbo EGR Port)
£12.00
(Inc. VAT)
£10.00 (Ex. VAT)

Description

EGR Blanking Plate (for Turbo EGR Port)

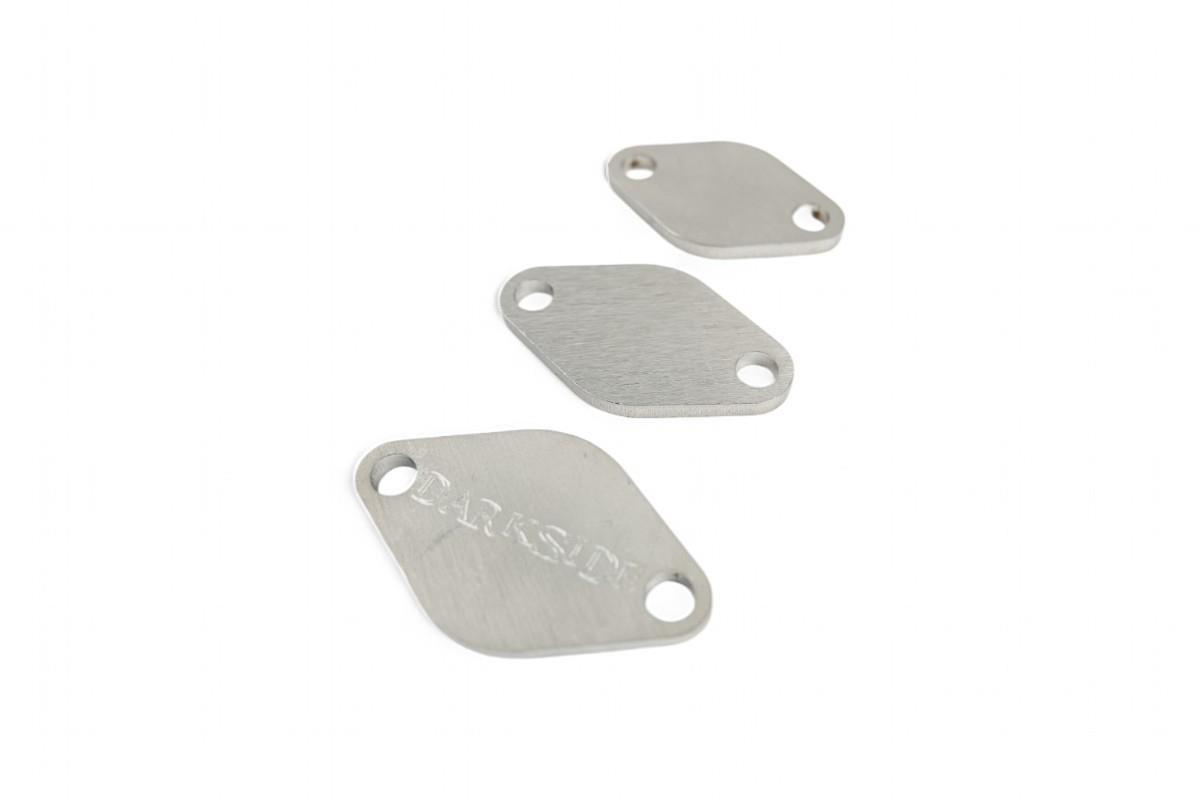

Darkside EGR Blanking Plates (For Turbo EGR Port)

Custom made 4mm Stainless Steel EGR Blanking plates to fit 1.9 8v TDI & 2.0 16v TDI Engines.

There are 3 Different sizes of blanking plate, please choose which Blank you require from the information below.

Blanking Plate Sizes:

Small Blanking Plate:

Hole to Hole (Centre to centre) - 46.50mm

Length - 63.2mm

Width - 38.7mm

Thickness - 5mm

Medium Blanking Plate:

Hole to Hole (Centre to centre) - 53.90mm

Length - 70mm

Width - 40mm

Thickness: 5mm

Large Blanking Plate:

Hole to Hole (Centre to centre) - 60mm

Length - 76mm

Wdith - 46mm

Thickness - 5mm


Genuine VAG Part Numbers:

Small Blanking Plate:

03L131547G - 03L131547 G - 03L 131 547 G
03L131547L - 03L131547 L - 03L 131 547 L
04L131547S - 04L131547 S - 04L 131 547 S

Medium Blanking Plate:

038131925 - 038 131 925
03G131550 - 03G 131 550
03L131547P - 03L131547 P - 03L 131 547 P

Large Blanking Plate:

028131547B - 028131547 B - 028 131 547 B
038131925A - 038131925 A - 038 131 925 A
03G131547B - 03G131547 B - 03G 131 547 B
069131547 - 069 131 547
069131547D - 069131547 D - 069 131 547 D


We also have the EGR Gaskets listed here:

https://www.darksidedevelopments.co.uk/products/egr-gasket-for-exhaust-manifold-turbocharger.html

Darkside Developments accepts no responsibility for the use of this part on the public highway where removal of emissions controls is prohibited. It is the customers responsibility to ensure they comply with rules and laws relating to their home country
