Description

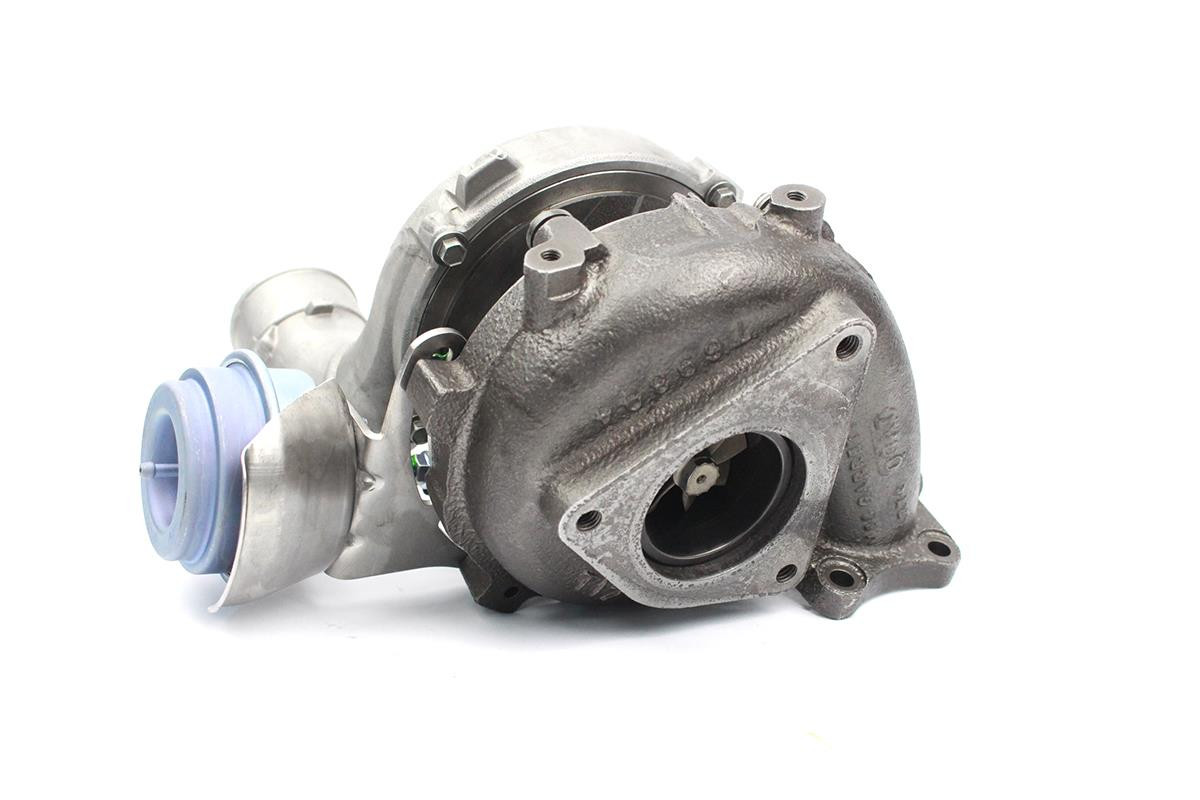

NEW Garrett GTB2260VK Turbocharger Vacuum Conversion
- Increase in Performance
-
Will out perform any of the common Hybrid Turbos
-
Maintain economy and drivability
-
Quicker spool and lower manifold pressures at high RPMs
- Low EMP's when running High Boost Pressures
Converted to Vacuum Actuator using a Short VNT17 Lever and supplied with Brand New Vacuum Actuator and Adjustable Laser Cut & CNC Folded Stainless Actuator Bracket
The GTB Turbochargers are the ultimate choice for the 1.9 & 2.0 TDI Engines, with the Generation 3 VNT System these will out perform any of the common Hybrid Turbochargers available, with low EMPs even when running high boost pressures
Here is a comparison of the various wheel sizes of the popular turbochargers, alongside the GTB Series turbochargers. Bare in mind that the GTB turbos have the latest 3rd Generation VNT System, which is far superior to the previous systems, resulting in quicker spool and lower manifold pressures at high RPMs compared to older 1st Gen Turbo's
Above is also a rough guide to what sort of power you can expect from each turbo, with a comparison to other popular turbochargers. This is assuming you have the appropriate supporting modifications for the individual turbocharger. The power figures are what is considered achievable under 'safe' parameters (Injection Duration, Exhaust Gas Temperature and Exhaust Manifold Pressures). Greater power has been achieved in the past with each setup, but in many cases this was pushing many of the components past their safe operating limits
VW / Audi Part Numbers - GTB2260VK Elongated Flange
059145722S - 059145722 S - 059 145 722 S
059145722L - 059145722 L - 059 145 722 L
Garrett Part Numbers - GTB2260VK Elongated Flange
776469-5 - 776469-0005 - 776469-0005S - 776469-5005 - 776469-5005S
776469-4 - 776469-0004 - 776469-0004S - 776469-5004 - 776469-5004S
769705-8 - 769705-0008 - 769705-0008S - 769705-5008 - 769705-5008S
769705-7 - 769705-0007 - 769705-0007S - 769705-5007 - 769705-5007S
769705-6 - 769705-0006 - 769705-0006S - 769705-5006 - 769705-5006S
As fitted to the following 3.0 V6 TDI 240PS Engines: CAPA, CCWA, CCWB
VW / Audi Part Numbers - GTB2260VK Even Spaced Flange
059145722R - 059145722 R - 059 145 722 R
059145722M - 059145722 M - 059 145 722 M
Garrett Part Numbers - GTB2260VK Even Spaced Flange
776470-3 - 776470-0003 - 776470-0003S - 776470-5003 - 776470-5003S
776470-1 - 776470-0001 - 776470-0001S - 776470-5001 - 776470-5001s
As fitted to the following 3.0 V6 TDI 240PS Engines: CASA, CASB, CCMA
We also produce Turbo Kits for several VAG TDI Models that allow these turbochargers to bolt directly onto your Engine with minimal modifications, please see our other items
