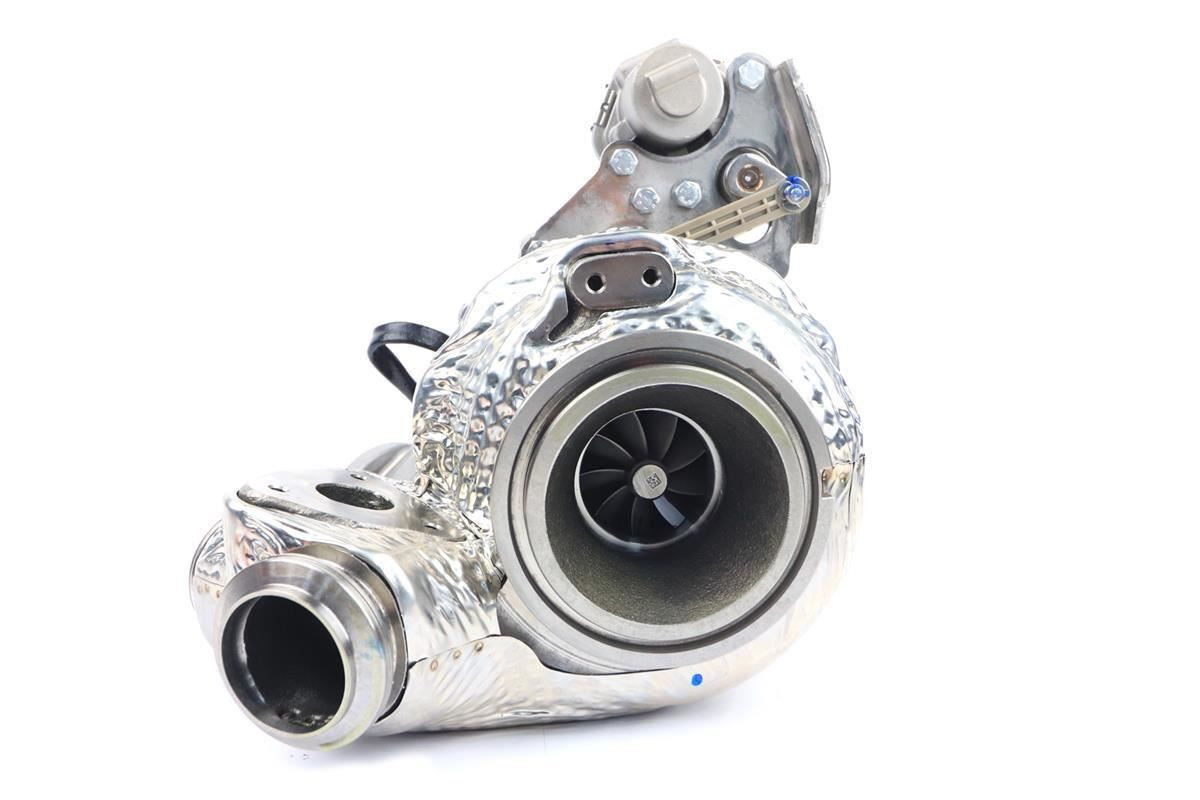

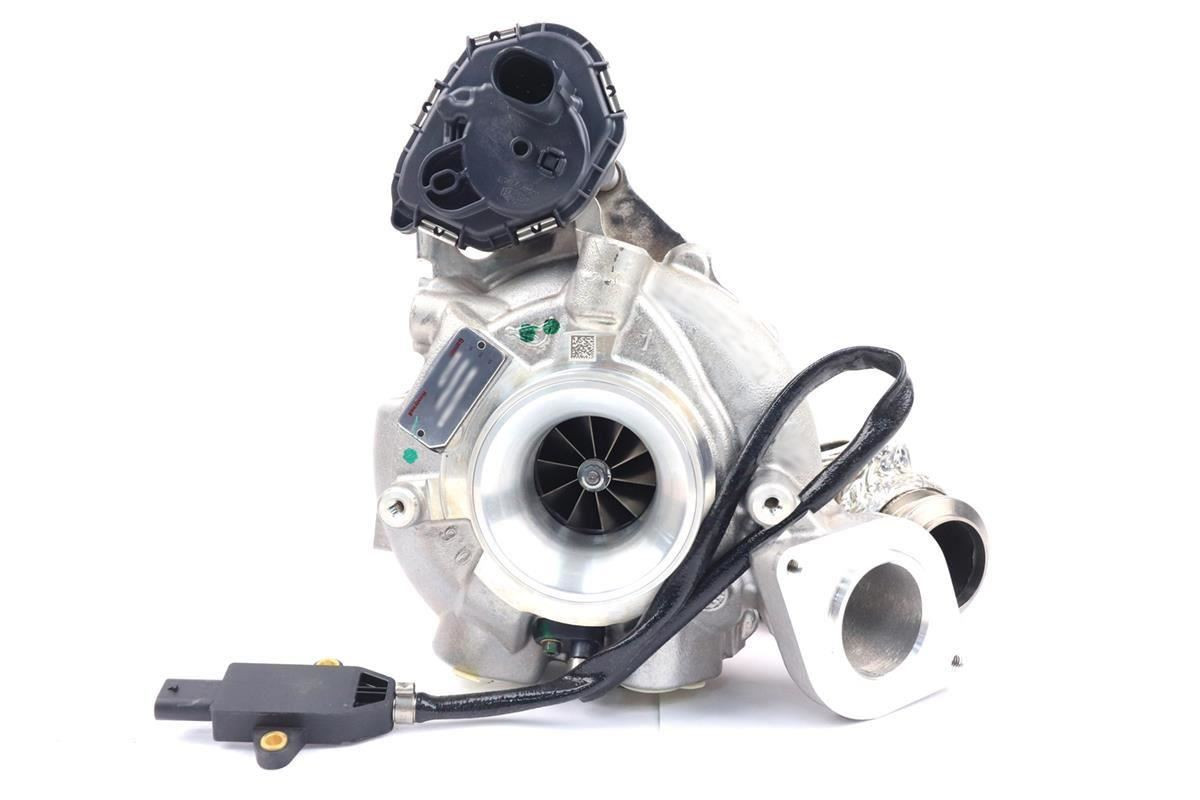

Garrett GTD2263VZ 3.0 TDI Turbocharger Upgrade Kit
Brand NEW Garrett GTD2263VZ Turbocharger Kit This turbo is capable of around 350bhp when tuned. We would rate the stock GTD2060VZ to just over 300bhpSpecs:
| Turbo | Comp Ind - | Comp Exd - | Extended Tip - | Blades - | A.R - | Turbine In - | Turbine Ex |
| GTD2263VZ | 44.5 | 63.1 | 66.9 | 6+6 | 54 | 50.1 | 42.9 |
| GTD2060VZ | 42.9 | 60 | 62.1 | 10 | 60 | 47 | 42.7 |
THIS TURBO NOW INCLUDES THE TURBO TO MAF TIP SILICONE TO REPLACE THE STOCK ITEM
Please select from the above options if you are fitting the turbo with, 'EGR Deleted' or 'Retain EGR'
If you are retaining the EGR you will need a different metal Turbo to EGR pipe, this will be supplied with the kit.This Kit Consists of:
1x GTD2263VZK Turbocharger1x Black TIP Silicone Pipe
1x EGR Pipe (If retaining EGR)
TIP Breather Fitting
All Required Clamps
This Kit will fit the following Vehicles:
Audi A4 / Avant - CSWB (218) CRTC (272)
Audi A4 / S4 / Avant / quattro - CSWB (218) CRTC (272)
Audi A5 / S5 Coupe Sport - CSWB (218)
Audi A6 / Avant - CZVC (211) CZVD (211) CRTF (211) CZVA (218) CZVB (218) CRTE (218) CRTD (272)
Audi A6 / S6 / Avant / quattro - CZVC (211) CZVD (211) CRTF (211) CZVA (218) CZVB (218) CRTE (218) CRTD (272)
Audi A6 allroad quattro - CZVF (190) CZVC (211) CRTF (211) CRTE (218) CZVA (218) CRTD (272)
Audi A7 Sportback - CZVF (190) CZVD (211) CZVC (211) CRTF (211) CZVB (218) CZVA (218) CRTE (218) CRTD (272)
Audi Q7 - CRTE (218) CVMD (249) CUEA (258) CVZA (258) CRTC (272)
Audi A7 Sportback - CZVE (190)
VW Amarok - DDXA (160) DDXB (201) DDXC (201) DDXE (258)
Replaces Genuine VW Part Numbers:
059145873DB - 059145873 DB - 059 145 873 DB
059145873BE - 059145873 BE - 059 145 873 BE
059145873BJ - 059145873 BJ - 059 145 873 BJ
059145873BP - 059145873 BP - 059 145 873 BP
059145873CH - 059145873 CH - 059 145 873 CH
059145873CL - 059145873 CL - 059 145 873 CL
