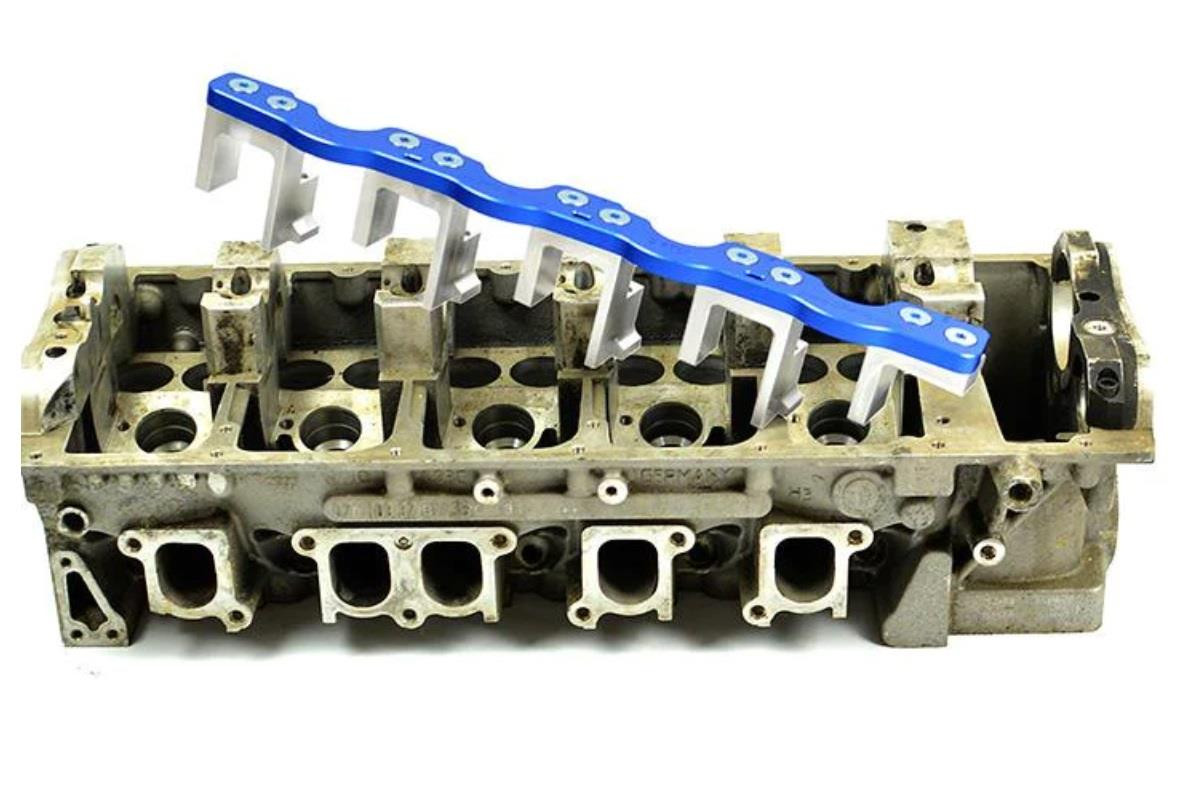

Injector Retainer Kit with Bridge for 2.5 TDI PD Engines

This is a PD Injector body holder kit / repair kit for the prevention of damage to PD injector seats in the Cylinder Heads on the 2.5 TDI PD engines

The OE design of the PD injector hold down bracket is not the best, clamp force is only applied to one side which allows for movement on the opposing side wearing down the injector seats in the cylinder head.

In the majority of cases, it wouldn't be necessary to replace a damaged / worn cylinder head when fitted with the injector body holder set along with the bridge. The injectors now become centred and will once again seal correctly around the worn / damaged sealing surface

Can be installed with the original bolts without making any changes to the injectors or the cylinder head

This is for the 2.5 TDI PD Engines. If you require 1.2 / 1.4 / 1.9 / 2.0 / 5.0 TDI PD retainer kit, please find link below in this listing.

Some signs of PD injector seat damage include:

Poor Starting Behavior (especially at operating temperature or after a long period of idle time)
Restless engine running / idling
Loss of Performance
Loss of Compression
Engine Oil Diluted by Diesel Admixture
Mis-firing / Low Oil Pressure (bearing shells already worn out by diesel in the oil)

The installation of this product takes place without any additional changes / work on the engine or the cylinder head

This Kit Consists of:

1x Aluminium Connecting Bridge
5x Steel Hold Down Clamps
Mounting Bolts - (Bridge to Clamps, you will still require the injector hold down bolts. See link in this listing)

If you require the injector retainer kit for 1.2 / 1.4 / 1.9 / 2.0 & 5.0 TDI PD engines, Shop Here:

https://www.darksidedevelopments.co.uk/products/injector-retainer-kit-for-various-vag-tdi-pd-engines.html

When installing these parts, you will require new Injector and Rocker Bolts.

Shop 2.5 TDI PD Injector Bolt Kit Here:

https://www.darksidedevelopments.co.uk/products/transporter-2-5-pd-tdi-injector-bolt-kit.html

This Kit will fit the following Vehicles:

VW Campmobile Type 2 / T2 - BNZ (131) AXD (131) BLJ (163) AXE (174) BPC (174)

VW Touareg - BLK (163) BPD (163) BPE (174) BAC (174)

VW Transporter Kombi - BNZ (131) AXD (131) BLJ (163) BPC (174) AXE (174)

Replaces Genuine VW Part Numbers:

038130069B - 038130069 B - 038 130 069 B
