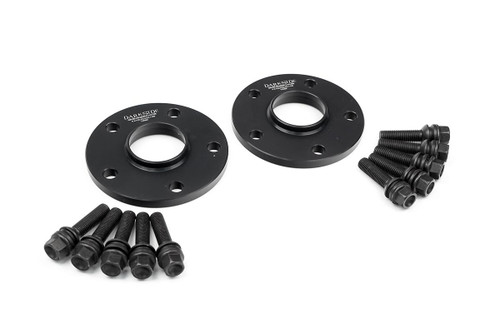

Pair of Darkside 5x120 PCD Wheel Spacers - 65.1mm Centre Bore (VAG)

1x Pair of Darkside 5 x 120 PCD Aluminium Wheel Spacers with 65.1mm Centre Bore - Alloy Wheels ONLY

For various VAG vehicles with 5x120 PCD Hub Fitment and a 65.1mm Centre Bore - Alloy Wheels ONLY

Offered in various sizes, with or without bolts

These spacers are made in the UK and made from high quality material. Unlike the cheaper equivalents, these are desgined to last and machined to perfection

Wheel spacers are ideal for widening the track of your vehicle, whether that be for handling purposes, or for styling purposes

Hub Centre Bore WIDTH:

PLEASE NOTE - If your Hub Centre Bore protrudes more than the Hubcentric Spacer Width ordered, they will NOT fit and will NOT sit flush with the face of the brake disc / hub. You MUST measure this BEFORE placing your order

Made in the UK

Anodised Black with Darkside Logo

Hubcentric - Spacers 10mm and Above ONLY

Darkside Logo:

Spacers are supplied as standard with the 'Darkside Developments' logo. If the spacers are not on the shelf, the lead time WITH the logo is around 7 - 10 days. If you are desperate for the spacers we can supply WITHOUT the Darkside logo and can be dispatched within around 1 - 2 days (if not in our stock). Please select With Darkside Logo or Without Darkside Logo using the above options.

Spacer Sizes (Select from above options):

3mm Flat Shims
5mm Flat Shims
12mm Hubcentric
15mm Hubcentric
20mm Hubcentric
30mm Hubcentric

Bolt Options:

BLACK RADIUS Bolts (19mm Hex Head)
SILVER RADIUS Bolts (19mm Hex Head)
BLACK TAPERED Bolts (17mm Hex Head)
SILVER TAPERED Bolts (17mm Hex Head)
The bolts supplied are to match spacer size, if you require a certain size bolt, please add the desired size in the 'Custom Bolt Size' at the top of this listing (DOES NOT APPLY TO 30MM SPACERS)
To calculate a custom bolt size it would be - Hub Thickness + Wheel Bolt Hole Thickness + Spacer Size = Bolt Length
In order to decide whether you will need longer bolts or not, you MUST measure how much the original bolt protrudes at the back of the hub. If this is LESS than the spacer thickness you require, you will require longer bolts.

Please see below what size bolts are supplIED with each size spacer - please ensure you check that these are correct for your type of wheel before ordering

3mm Shims
Silver Tapered - 30mm Thread
Silver OEM Radius - 42mm Thread
Black Tapered - 30mm Thread
Black OEM Radius - 42mm Thread

5mm Shims
Silver Tapered - 33mm Thread
Silver OEM Radius - 45mm Thread
Black Tapered - 33mm Thread
Black OEM Radius - 45mm Thread

12mm Spacers
Silver Tapered - 40mm Thread
Silver OEM Radius - 48mm Thread
Black Tapered - 40mm Thread
Black OEM Radius - 48mm Thread

15mm Spacers
Silver Tapered - 43mm Thread
Silver OEM Radius - 53mm Thread
Black Tapered - 43mm Thread
Black OEM Radius - 53mm Thread

20mm Spacers
Silver Tapered - 47mm Thread
Silver OEM Radius - 58mm Thread
Black Tapered - 47mm Thread
Black OEM Radius - 58mm Thread

To decide if you need Radius or Tapered bolts, here is a photo showing a brief description explaining the difference

Hub Centre Bore WIDTH:

PLEASE NOTE - If your Hub Centre is wider than the Hubcentric Spacer Width ordered, they will NOT fit and will NOT sit flush with the face of the brake disc / hub. You MUST measure this BEFORE placing your order

30MM SPACERS:

These spacers bolt to the hub, and then your wheel bolts to the spacer. If order 'without bolts' you will receive 2x Spacers and 10x bolts (to bolt the spacer to the hub) - your standard length wheel bolts can then be used to bolt the wheel to the spacer.

If you select any of the bolt options, you will receive 2x Spacers, 10x Bolts (spacer to hub) and then 10x standard length bolts (wheel to spacer) of whichever type you have selected

Common Vehicles with 5x120 Hub Fitment (65.1mm Centre Bore)(please note, may also fit more models / applications)

Transporter T5 / T5.1 / T6 / T6.1
VW Amarok

PLEASE NOTE:

These spacers are suitable for ALLOY WHEELS ONLY

PLEASE ENSURE YOU DOUBLE CHECK THE SIZE OF THE SPACERS YOU REQUIRE BEFORE ORDERING, RETURNS CANNOT BE ACCEPTED FOR INCORRECTLY PLACED ORDERS

Please note: Some spacers will not be availble immediately off the shelf and will have to be made to order, prolonging the dispatch time. You will be emailed and notified if your order cannot be dispatched the same day.

Please email prior to purchase if you are desperate for spacers, this way we can advise whether we have them on the shelf ready for immediate dispatch
