Pair of Darkside 5x120 PCD Wheel Spacers - 72.5mm Centre Bore (BMW)

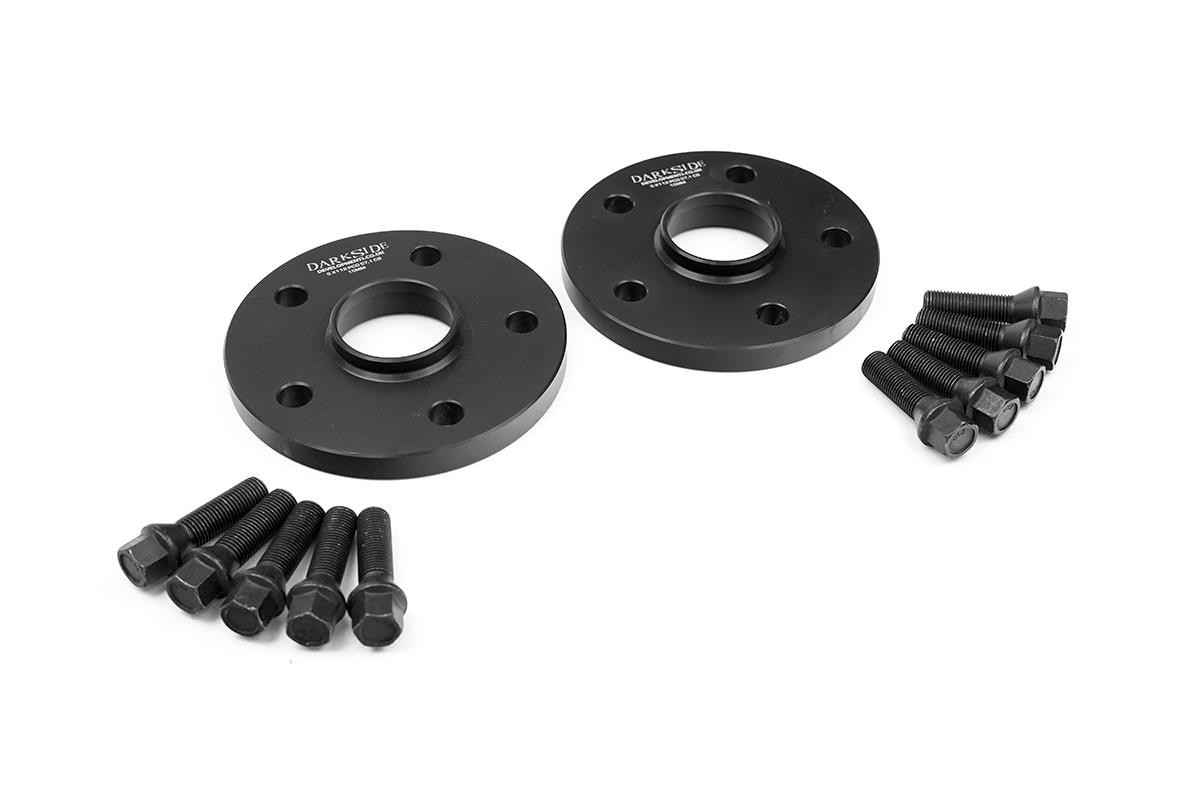

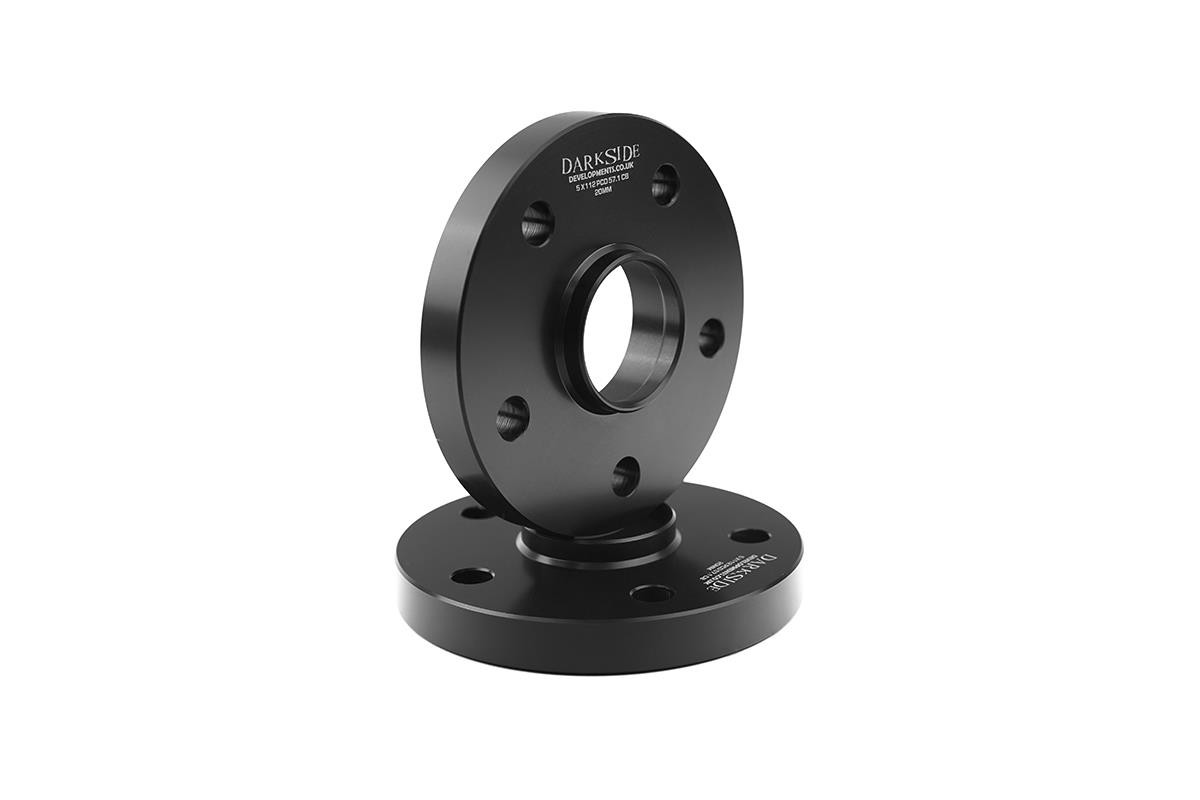

1x Pair of Darkside 5 x 120 PCD Aluminium Wheel Spacers with 72.5mm Centre Bore For various BMW vehicles with 5x120 PCD Hub Fitment and a 72.5mm Centre Bore Offered in various sizes, with or without bolts These spacers are made in the UK and made from high quality material. Unlike the cheaper equivalents, these are desgined to last and machined to perfection Wheel spacers are ideal for widening the track of your vehicle, whether that be for handling purposes, or for styling purposesHub Centre Bore WIDTH:
PLEASE NOTE - If your Hub Centre Bore protrudes more than the Hubcentric Spacer Width ordered, they will NOT fit and will NOT sit flush with the face of the brake disc / hub. You MUST measure this BEFORE placing your order
Darkside Logo:
Spacers are supplied as standard with the 'Darkside Developments' logo. If the spacers are not on the shelf, the lead time WITH the logo is around 7 - 10 days. If you are desperate for the spacers we can supply WITHOUT the Darkside logo and can be dispatched within around 1 - 2 days (if not in our stock). Please select With Darkside Logo or Without Darkside Logo using the above options.Spacer Sizes (Select from above options):
3mm Flat Shims5mm Flat Shims
12mm Hubcentric
15mm Hubcentric
20mm Hubcentric
25mm Hubcentric
30mm Hubcentric
Bolt Options:
M12 BLACK RADIUS BoltsM14 BLACK RADIUS Bolts
M12 SILVER RADIUS Bolts
M14 SILVER RADIUS Bolts
M12 BLACK TAPERED Bolts
M14 BLACK TAPERED Bolts
M12 SILVER TAPERED Bolts
M14 SILVER TAPERED Bolts
PLEASE ENSURE YOU CHECK THE THREAD SIZE OF THE BOLTS REQUIRED BEFORE ORDERING
The bolts supplied are to match spacer size, if you require a certain size bolt, please add the desired size in the 'Custom Bolt Size' at the top of this listing To calculate a custom bolt size it would be - Hub Thickness + Wheel Bolt Hole Thickness + Spacer Size = Bolt Length In order to decide whether you will need longer bolts or not, you MUST measure how much the original bolt protrudes at the back of the hub. If this is LESS than the spacer thickness you require, you will require longer bolts.Please see below what size bolts are supplIED with each size spacer - please ensure you check that these are correct for your type of wheel before ordering
3mm Shims
M12 Black Tapered - 30mm Length
M14 Black Tapered - 33mm Length
M12 Silver Tapered - 30mm Length
M14 Silver Tapered - 33mm Length
5mm Shims
M12 Black Tapered - 32mm Length
M14 Black Tapered - 35mm Length
M12 Silver Tapered - 32mm Length
M14 Silver Tapered - 35mm Length
12mm Spacers
M12 Black Tapered - 39mm Length
M14 Black Tapered - 38mm Length
M12 Silver Tapered - 39mm Length
M14 Silver Tapered - 38mm Length
15mm Spacers
M12 Black Tapered - 43mm Length
M14 Black Tapered - 43mm Length
M12 Silver Tapered - 43mm Length
M14 Silver Tapered - 43mm Length
20mm Spacers
M12 Black Tapered - 47mm Length
M14 Black Tapered - 47mm Length
M12 Silver Tapered - 47mm Length
M14 Silver Tapered - 47mm Length
25mm Spacers
M12 Black Tapered - 55mm Length
M14 Black Tapered - 50mm Length
M12 Silver Tapered - 55mm Length
M14 Silver Tapered - 50mm Length
30mm Spacers
M12 Black Tapered - 60mm Length
M14 Black Tapered - 60mm Length
M12 Silver Tapered - 60mm Length
M14 Silver Tapered - UNAVAILABLE
To decide if you need Radius or Tapered bolts, here is a photo showing a brief description explaining the difference
Hub Centre Bore WIDTH:
PLEASE NOTE - If your Hub Centre is wider than the Hubcentric Spacer Width ordered, they will NOT fit and will NOT sit flush with the face of the brake disc / hub. You MUST measure this BEFORE placing your order
We also have listed our Stud and Nut Kits which can be used alongside these spacers:
BMW M14 - F Series BMW Models
BMW M12
Common Vehicles with 5x120 Hub Fitment (72.5mm Centre Bore)(please note, may also fit more models / applications)
BMW ModelsPLEASE ENSURE YOU DOUBLE CHECK THE SIZE OF THE SPACERS YOU REQUIRE BEFORE ORDERING, RETURNS CANNOT BE ACCEPTED FOR INCORRECTLY PLACED ORDERS
Please note: Some spacers will not be availble immediately off the shelf and will have to be made to order, prolonging the dispatch time. You will be emailed and notified if your order cannot be dispatched the same day.
Please email prior to purchase if you are desperate for spacers, this way we can advise whether we have them on the shelf ready for immediate dispatch
Additional Information
Product Type: |
Wheel Spacers / Studs / Bolts |
Wheel PCD: |
5x120 |
Wheel Centre Bore: |
72.5 |
