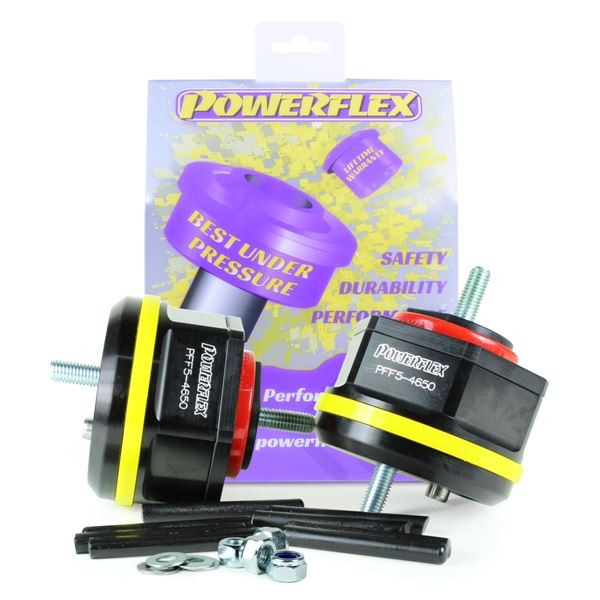

Front Engine Mount - 2 x PFF5-4650

Tuneable engine mounts to suit your driving demands. This mount uses a combination of our Red 65A and Purple 80A materials and can be stiffened further using the Black 95A pins. It fits 6-cyl models only except the E46 Xi and Convertible models, and for the E9* it fits the M3 only. It will not fit any 4-cyl petrol models. An increase in NVH, usually at idle, should be expected when stiffening the connecting mount between the engine/transmission and chassis. The harder the material used, the greater the NVH transmitted. We do not recommend fitting these mounts to diesel-engined vehicles due to excessive NVH. The graph above shows Load vs Displacement, peaking at 5mm displacement.PFF5-4650 is just under 200% stiffer than OE at 5mm compression, increasing to 300%with the 4 adjuster pins installed

Diagram Reference

50

Compound

Road Series

Location on Vehicle

Front

Adjustment

Fixed

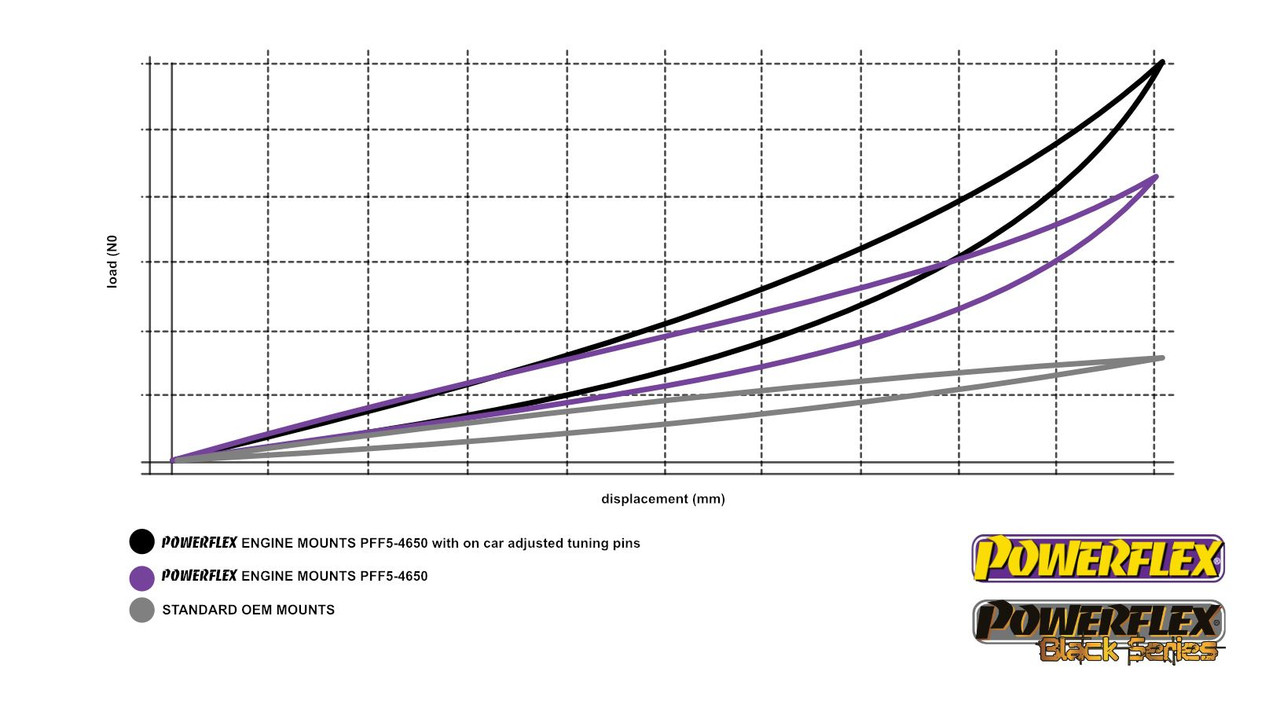

The Graph is showing Load against Movement, the peaks are at 5mm. PFF5-4650 is just under 200% stiffer at 5mm compression,with the 4 adjuster pins installed just under 300% over standard.

Included in the Kit:

2 x PFF5-4650 - Engine Mount

Replaces Part Numbers

22 11 6 779 970 - 22116779970 - 6 779 970 - 6779970
22 11 6 771 361 - 22116771361 - 6 771 361 - 6771361
22 11 1 095 444 - 22111095444 - 1 095 444 - 1095444
11 81 1 092 583 - 11811092583 - 1 092 583 - 1092583
11 81 2 283 798 - 11812283798 - 2 283 798 - 2283798
11 81 7 837 985 - 11817837985 - 7 837 985 - 7837985
11 81 2 228 298 - 11812228298 - 2 228 298 - 2228298
11 81 1 136 542 - 11811136542 - 1 136 542 - 1136542

Related Item

PFF5-4655 - Transmission Mounting Bush (Fast Road)
The perfect accompaniment to PFF5-4655 on E36/E46/E9* models

Series / Chassis

E36 / E46 / E85 / E86 / E90 / E90N / E92 / E92N / E93 / E93N / Z3

Models

320Ci / 320i / 323Ci / 323i / 325Ci / 325i / 325ti / 325xi / 328Ci / 328i / 330Ci / 330i / 330xi / M3 / Z3 / Z4

Engines

M52 / M54 / M56 / N52 / S50 / S52 / S54 / S65

To fit the following vehicles

E36 S50 M3 3.2 Convertible
E36 S50 M3 3.2 Coupe
E36 S50 M3 3.2 Saloon
E36 S50 M3 Convertible
E36 S50 M3 Coupe
E36 S50 M3 Saloon
E36 S52 M3 3.2 Convertible
E36 S52 M3 3.2 Coupe
E36 S52 M3 3.2 Saloon
E46 M52 320Ci Coupe
E46 M52 320i Saloon
E46 M52 320i Touring
E46 M52 323Ci Convertible
E46 M52 323Ci Coupe
E46 M52 323i 2.4 Saloon
E46 M52 323i Saloon
E46 M52 323i Touring
E46 M52 328Ci Coupe
E46 M52 328i Saloon
E46 M52 328i Touring
E46 M54 320Ci Convertible
E46 M54 320Ci Coupe
E46 M54 320i Saloon
E46 M54 320i Touring
E46 M54 325Ci Convertible
E46 M54 325Ci Coupe
E46 M54 325i Saloon
E46 M54 325i Touring
E46 M54 325ti Compact
E46 M54 325xi Saloon
E46 M54 325xi Touring
E46 M54 330Ci Convertible
E46 M54 330Ci Coupe
E46 M54 330i Saloon
E46 M54 330i Touring
E46 M54 330xi Saloon
E46 M54 330xi Touring
E46 M56 325Ci Coupe
E46 M56 325i Saloon
E46 M56 325i Touring
E46 S54 M3 Convertible
E46 S54 M3 Coupe
E46 S54 M3 CSL Coupe
E85 M54 Z4 2.2i Roadster
E85 M54 Z4 2.5i Roadster
E85 M54 Z4 3.0i Roadster
E85 N52 Z4 2.5i Roadster
E85 N52 Z4 2.5si Roadster
E85 N52 Z4 3.0i Roadster
E85 N52 Z4 3.0si Roadster
E85 S54 Z4 M3.2 Roadster
E86 N52 Z4 3.0si Coupe
E86 S54 Z4 M3.2 Coupe
E90 S65 M3 Saloon
E90N S65 M3 Saloon
E92 S65 M3 Coupe
E92N S65 M3 Coupe
E93 S65 M3 Convertible
E93N S65 M3 Convertible
Z3 M52 2.0 Roadster
Z3 M52 2.5 Roadster
Z3 M52 2.8 Coupe
Z3 M52 2.8 Roadster
Z3 M54 2.2i Roadster
Z3 M54 2.5i Roadster
Z3 M54 3.0i Coupe
Z3 M54 3.0i Roadster
Z3 S50 M3.2 Coupe
Z3 S50 M3.2 Roadster
Z3 S52 M3.2 Coupe
Z3 S52 M3.2 Roadster
Z3 S54 M3.2 Coupe
Z3 S54 M3.2 Roadster

Aftermarket Comparison Numbers

BOGE - 87-888-A
CORTECO - 603820
FEBI BILSTEIN - 15533
FIRST LINE - FEM3201
HUTCHINSON - 597051
JP GROUP - 1417901100
KAWE - FL4237-J
KRAFT AUTOMOTIVE - 1492530
KRAFT AUTOMOTIVE - 1492550
LEMFÖRDER - 10453 02 - 1045302
MAPCO - 36865
MEYLE - 300 118 1107 - 3001181107
MAXGEAR - 76-0005
OCAP - 1225103
QUINTON HAZELL - EM4078
3RG - 40117
BOGE - 88-033-A
CORTECO - 601552
FEBI BILSTEIN - 15660
HUTCHINSON - 597017
LEMFÖRDER - 15487 01 - 1548701
MEYLE - 314 030 0003 - 3140300003
PEX - 12.13.108
PEX - 12.13.216
PEX - 12.13.224
RUVILLE - 325006
SWAG - 20 13 0044 - 20130044
VAICO - V20-1023
