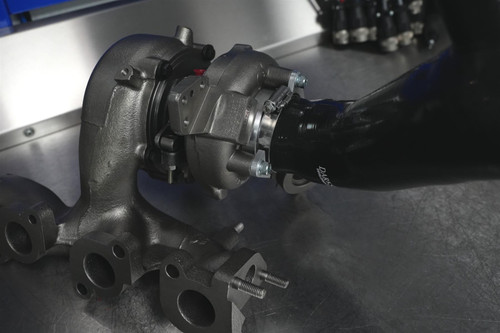

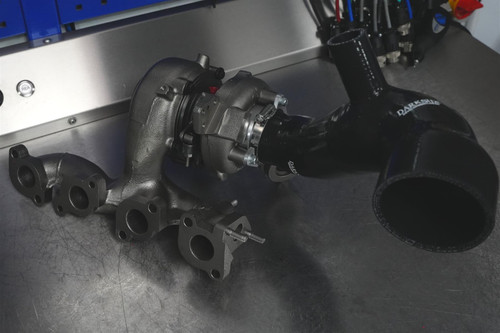

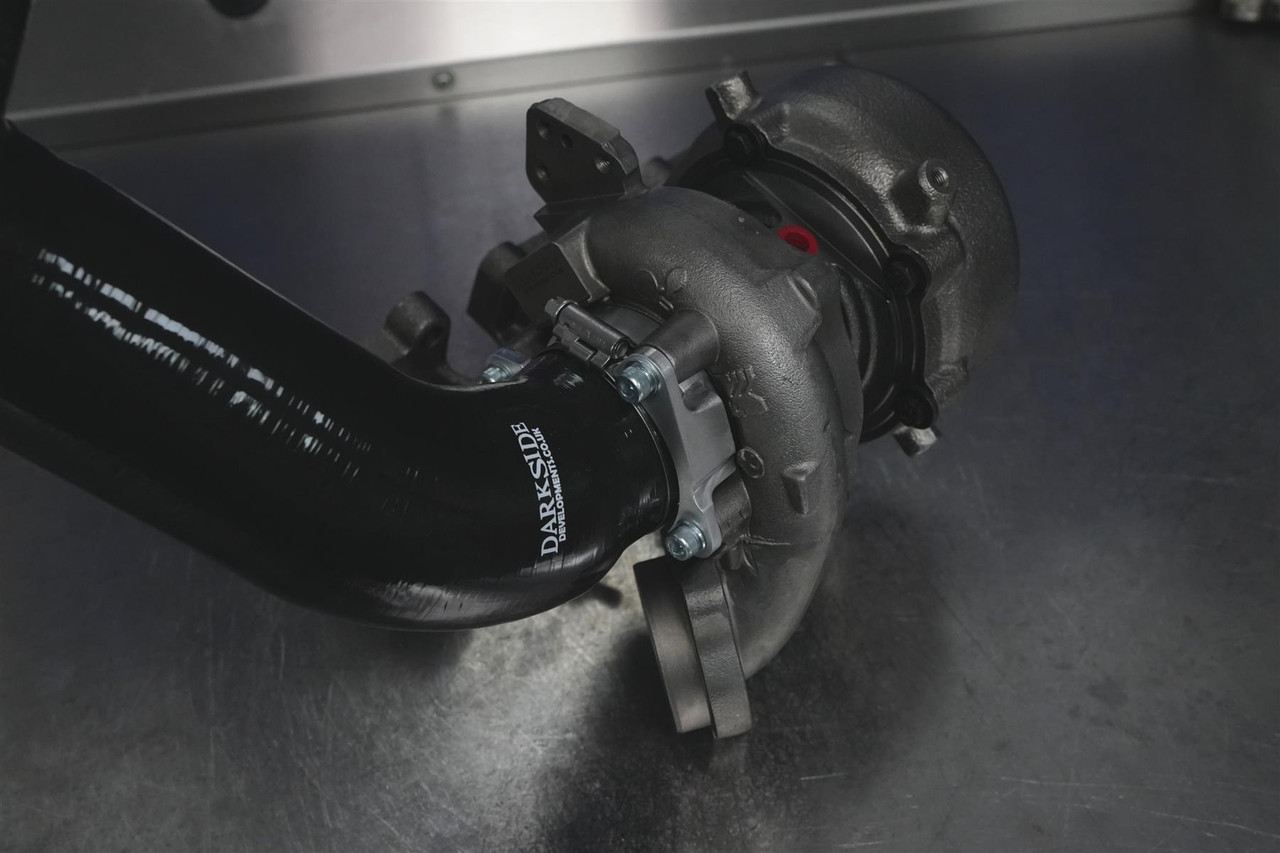

Turbo to Airbox TIP Silicone for 2.0 TDI 16v CJAA / CBEA / CKRA US Spec LHD Engines

This Silicone Hose is a Direct Replacement for the Standard Plastic TIP Pipe from the Stock Turbo to the Airbox on the 2.0 TDI CJAA / CBEA & CKRA US Spec Engine

Please Note - This silicone is NOT suitable for GTB turbochargers

3 Ply Thickness

Darkside Developments Logo

MADE IN THE UK

Available in 12 Colours

Fitment:

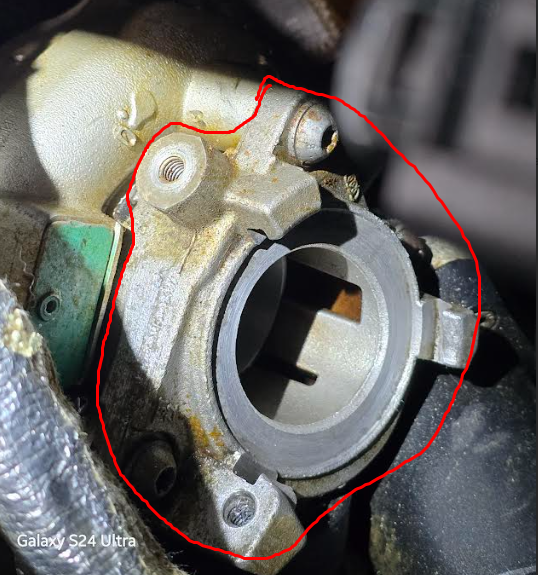

Please note: This TIP Silicone Hose will require the Low Pressure EGR removing to clamp onto the compressor cover on the turbo. The below plate will need removing:

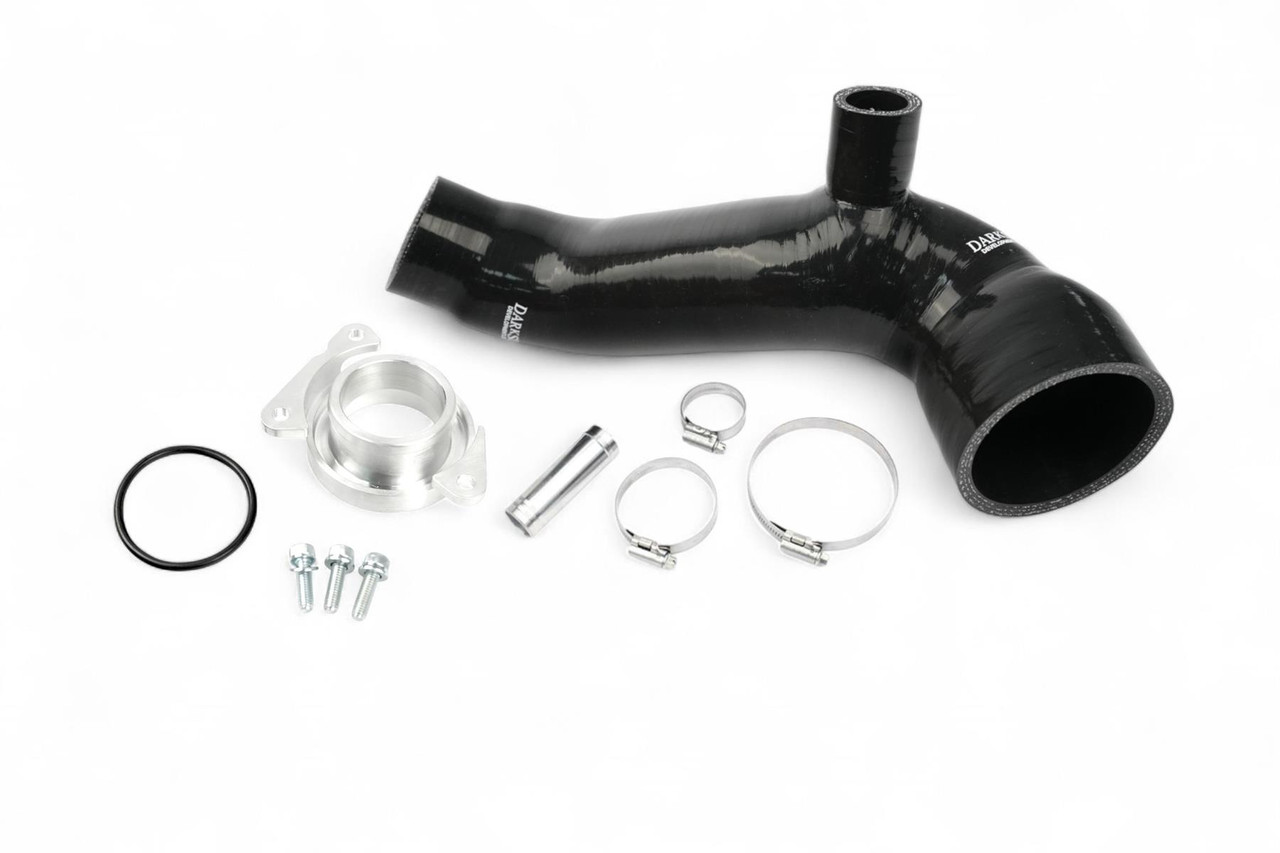

This Kit Consists of:

1x Turbo to Airbox TIP Silicone
3x Clamps
1x Aluminium Barbed Fitting for OEM Breather Pipe

This Kit will fit Vehicles with the following Engine Codes:

Audi A3 / S3 - CBEA (140)

VW Beetle - CJAA (140)

VW Beetle Cabrio - CJAA (140)

VW Bora - CBEA (140) CJAA (140)

VW Golf - CJAA (140)

VW Golf Variant - CJAA (140)

VW Jetta - CBEA (140) CJAA (140)

VW Jetta Variant - CJAA (140) CBEA (140)

VW Novo Fusca - CJAA (140)

VW Passat / Variant - CKRA (140)

VW Vento - CBEA (140) CJAA (140)

VW Vento Variant - CJAA (140) CBEA (140)

Replaces Genuine VAG Part Number:

1K0129654AN - 1K0129654 AN - 1K0 129 654 AN
1K0129654BB - 1K0129654 BB - 1K0 129 654 BB
1K0129654BC - 1K0129654 BC - 1K0 129 654 BC

SUITABLE FOR LEFT HAND DRIVE VEHICLES ONLY
