VAG US SPEC CPNA / CPNB / CNRB 3.0 TDI Oil Cooler Kit with CNC Oil FIlter Cap

Darkside Oil Cooler Kit with all fittings and hose required to fit the US Spec CPNA / CPNB / CNRB 3.0 TDI Engines

Oil Coolers are an important addition to high performance engines. Engine Oil can easily overheat causing it to becomes thinner and offer less protection to vital engine parts, resulting in premature engine wear

This kit includes universal brackets allowing the cooler to be mounted where best suitable. It needs to be fitted in a position where airflow can easily pass through, such as the front of the car by the radiator or fog lights. The Universal brackets can be cut or bent to allow fitment in the correct place

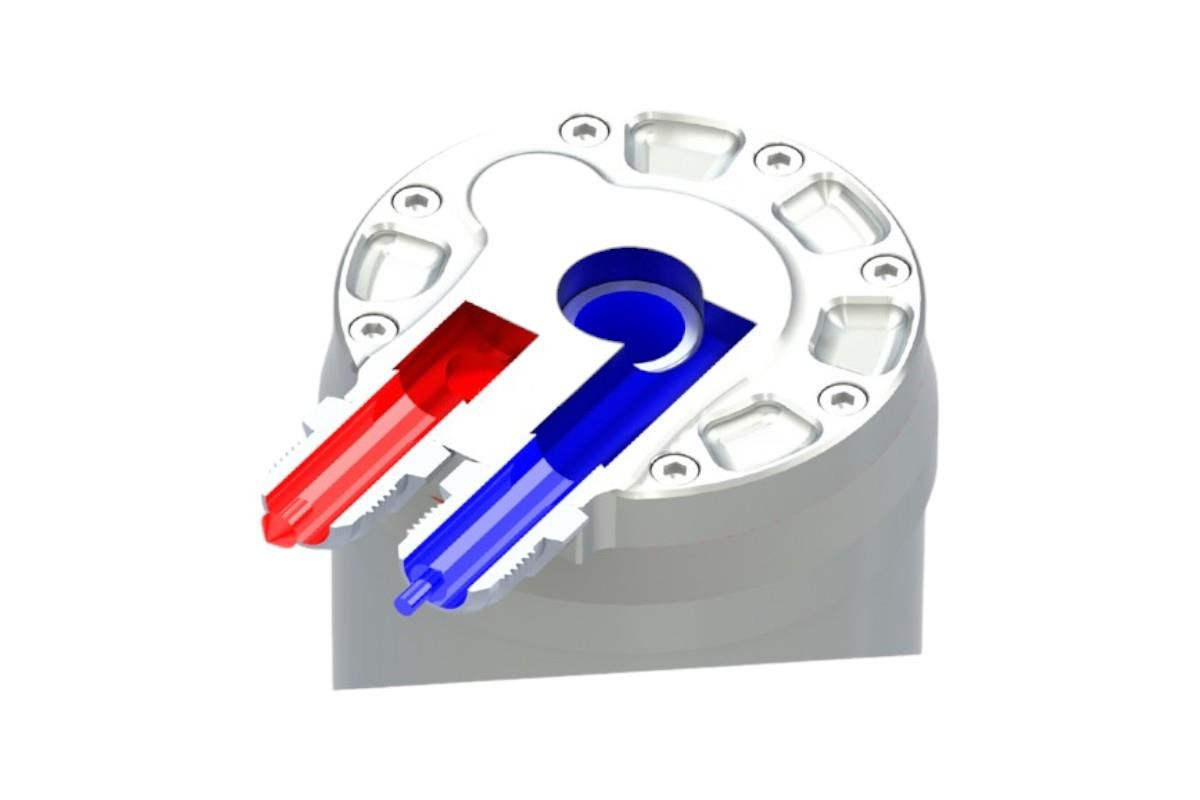

Our oil filter cap adapter replaces the oil filter cap allowing fitment of an external oil cooler and whilst still circulating the coolant

Oil Cooler Specifications:

19 Row: Max Pressure 10 BAR (145 PSI) - Width (Overall) - 330mm - Width (Core) - 257mm x Height - 135mm x Depth - 50mm - Volume - 300ml

25 Row: Max Pressure 10 BAR (145 PSI) - Width (Overall) - 330mm - Width (Core) - 257mm x Height - 180mm x Depth - 50mm - Volume - 300ml

This Kit Consists of:

Oil Cooler - 19 or 25 Row
4 x AN10 Straight Connectors
4 x AN10 90 Push Fit Connectors
4 x AN10 45 Push Fit Connectors
4m Push Fit Hose
4 x Jubilee Clamps
Universal Bracket Kit

This Kit will fit Vehicles with the following Engine Codes:

Audi A6 / Avant -CPNB (239)

Audi A6 / S6 / Avant / quattro -CPNB (239)

Audi A7 Sportback - CPNB (239)

Audi A8 -CPNB (239) CPNA (239)

Audi A8 / S8 quattro -CPNA (239) CPNB (239)

Audi Q5 -CPNB (239)

Audi Q7 - CNRB (239)

VW Touareg -CNRB (239)

Replaces Genuine VAG Part Numbers:

059115389G - 059115389 G - 059 115 389 G
059115389H - 059115389 H - 059 115 389 H
059115389K - 059115389 K - 059 115 389 K
059115389P - 059115389 P - 059 115 389 P
059115446B - 059115446 B - 059 115 446 B
059121139B - 059121139 B - 059 121 139 B
