Description

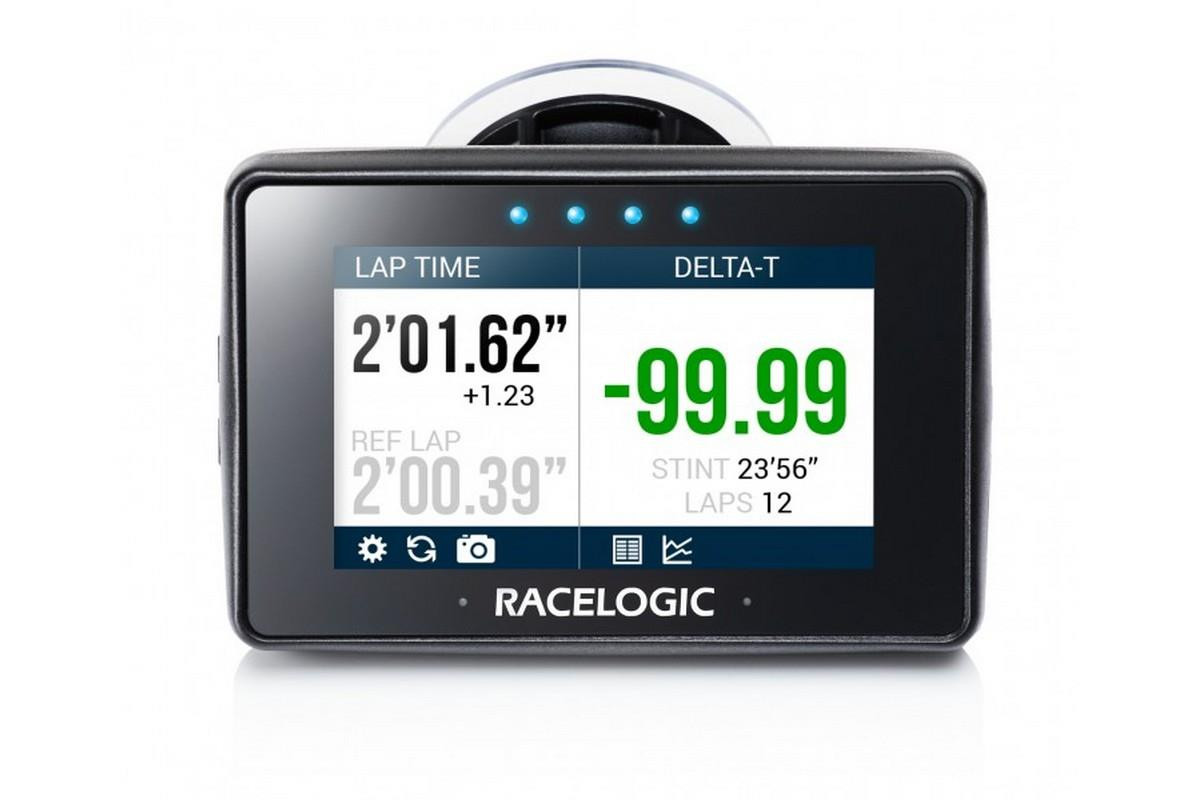

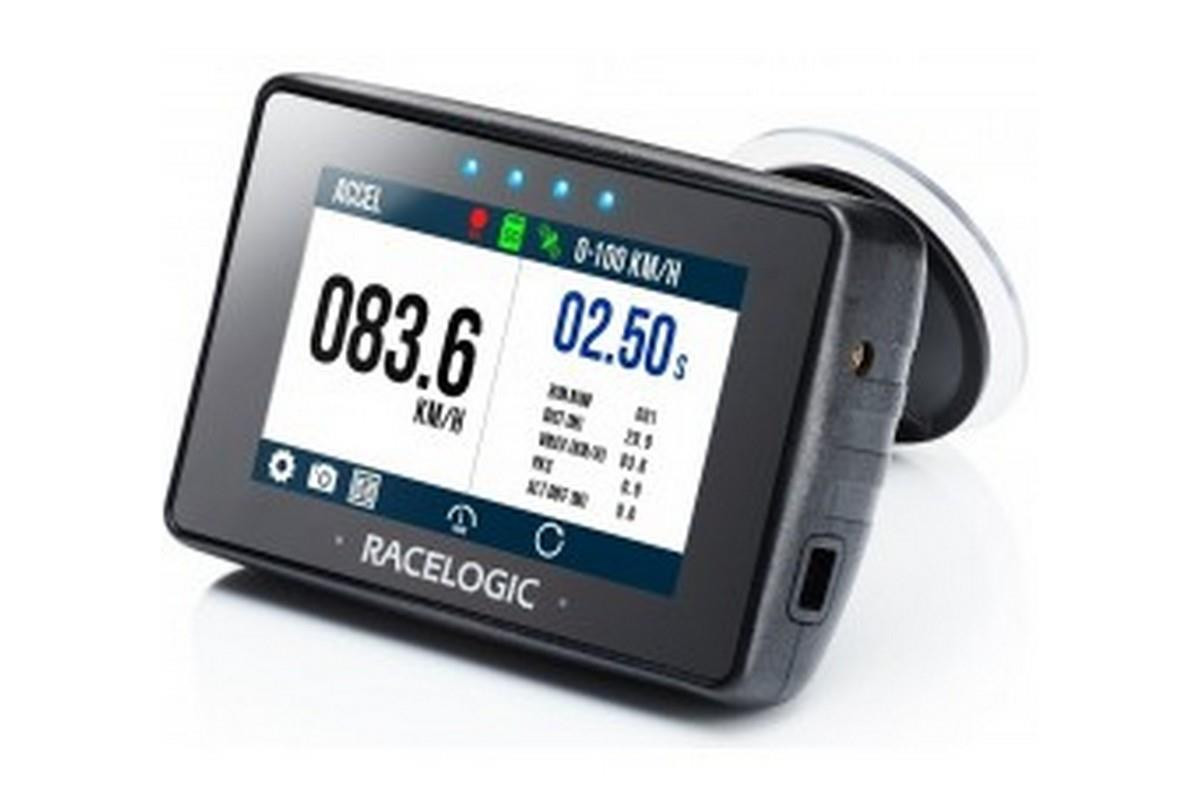

VBOX Performance Box Touch
Performance Box Touch is a touch screen performance meter, lap timer and data logger in one. It measures speed, lap & split times, delta-T, acceleration, deceleration, distance and more. All these parameters are logged to an SD card ten times per second and can be viewed on screen and analysed in detail using the VBOX Test Suite or Circuit Tools software provided.Features:
Large Touch Screen - 4.3" TFT daylight readable capacitive touch screen, 480*800 pixels
Live Slope Correction - The slope correct function for accel tests will correct the acceleration time result relative to the gradient the test was performed on and display the result live on screen.
Inbuilt GPS Antenna - 10 Hz GPS receiver with internal patch antenna and optional external GPS antenna (overrides the internal antenna when connected)
Free Analysis Software - Analyse your vehicles performance in a range of acceleration and braking tests with VBOX Test Suite and your lap times with Circuit Tools
SD Card Logging - All these parameters are logged to an SD card ten times per second and can be viewed and analysed in detail using the supplied software.
Operation Modes:
Performance Box Touch has 4 modes available which allow you to conduct a range of performance tests and functions: Acceleration, Deceleration, Lap Time and Speed.
Acceleration Testing
Acceleration tests: 0–60, 0–100, 100–200 km/h or mph.Concurrent acceleration tests: Since firmware 1.4, it is possible to conduct four concurrent acceleration tests, visible via two new acceleration screens - Secondary and Best Results.Other predefined tests: 0–100–0, 0–200–0, 0–300-0 and 0–400-0 km/h or mph tests or distance including 0–400 and 0–1000 meters as well as 0–¼ mile and 0–½ mile.Custom tests can be configured, and other options include enabling or disabling alert at end of test, one-foot rollout and slope correction.Screen displays time, run number, distance, VMAX, Peak G and altitude difference.
Deceleration Testing
Deceleration tests: 60-0, 100-0, 200–0, 300–0 km/h or mph.Custom tests, allowing the user to define their own configurable settings.Screen displays time, run number, distance, Peak G and altitude difference. Units of measurement for speed or distance can be displayed in metric or imperial and easily swapped between.
Lap Timing
Sophisticated lap timer with an updatable built-in database of over 800 circuits, real-time Delta-time, Delta-speed (shown via LEDs), Best Lap Time, Current Lap Time, Total Session Time and Lap Count.
Virtual Start/Finish Lines: Using GPS, there is no need for an external beacon or transmitter, as timing will start with vehicle movement. Separate start and finish lines can be set for sprint or hill climbing.
Speed Display
Digital speedometer: Performance Box Touch also works as a highly accurate digital speedometer, a handy feature for street driving.Units can be set in kph or mph and display can show live speed, VMAX, average speed and distance including setting a target speed.
Powerful Circuit Analysis Software
Suitable for - Windows / macOS / iOS
Each Performance Box Touch is supplied with an SD card containing the VBOX Test Suite & Circuit Tools software.
Circuit Tools is designed by racing drivers for racing drivers, with none of the complexity normally associated with data analysis software
The software will automate many tasks and give you all the information required to improve lap times
VBOX Test Suite Software
Suitable for - Windows ONLY
VBOX Test Suite, user-friendly, intuitive data analysis software makes the analysis of vehicle acceleration and brake test data quick and clear
Dedicated plugins and visual aids such as charts, graphs and tables allow you to analyse your data in more detail.
For more information surrounding the VBOX Performance Box Touch, check out this link:
https://vboxmotorsport.co.uk/index.php/en/performance-box-touch
