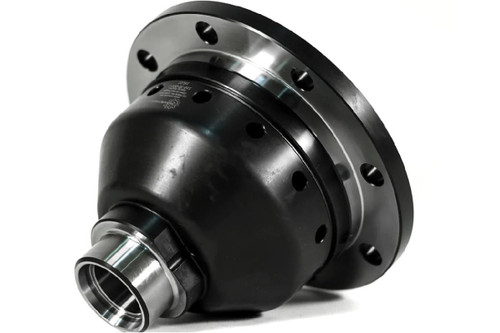

Wavetrac ATB LSD for 02J 2WD 5 Speed Manual (Bolt In Axles)

Wavetrac ATB Limited Slip Differential for 5 Speed Manual 2WD 02J Gearbox / Transmission with Bolt In Axles ONLY

Wavetrac are the only gear diff on the market that does not lose all drive when one axle is unloaded. Axles become unloaded in aggressive driving, track cornering, extremely slick surfaces, etc. It happens more than most people realise.

An example to explain how this work is that when you have a conventional gear diff, you're on a race track for a track day and during cornering your inside wheel bumps over the curbing. This is normal for track driving. The issue is that for the brief moments your inside tire becomes unloaded when bouncing over curbs, your other wheel is not getting drive / is not putting power down. Gear diffs need load on both axles in order to function. The result on a track (or during aggressive driving) is that there are many times when a normal gear diff supplies only intermittent power to the gripping wheel.

The difference with the Wavetrac is the patented cam device in the Wavetrac diff prevents loss of drive when that inside wheel is unloaded. The device is able to generate a load inside the diff (to replace the lost load as it happens) that can then be biased to the gripping wheel - in the end making more consistent power delivery through a corner. That makes the car more predictable, and faster overall.

Patented Carbon Fibre Bias Plate for the pinions

ARP Bolts used throughout for superior faster reliability

9310 steel gears run in billet or forged steel bodies

Manufactured & Designed in the USA

Patented Wave Profile eliminates the effect of a near to and zero load condition drive ability issues found in all other gear type ATB LSDs

One of the most underrated benefits of the Wavetrac is its smooth delivery of power near the limit. Its patented design makes for a very predictable, smooth addition of power when you need it most - when things are at their limits: on the edge of traction mid-corner and using throttle to keep it there; or coming into a corner a little hot, but quickly back on it to maintain exit speed...
These situations are often subjective to the driver, but the benefit can be felt. The Wavetrac makes you faster because it lets you drive with confidence. Smooth is fast.

We have the ARP Ring Gear Bolts Listed Here:

https://www.darksidedevelopments.co.uk/products/arp-02a-02j-02j-b-02s-02r-differential-bolt-kit-ring-gear-bolts.html

We have the 02J Differential Bearing Kit listed here:

https://www.darksidedevelopments.co.uk/products/02j-differential-bearing-kit-including-shims-and-seals.html

This item will fit the following Vehicles:

Audi A3 - ALH / AGR 90, AXR / ATD 100, AHF / ASV 110

Seat Cordoba - AFN / ASV / ASK 110

Seat Ibiza - ATD / AXR / BMT 100, AFN / ASV / ASK 110

Seat Leon - ALH / AGR 90, AXR 100, ASV / AHF 110

Seat Toledo - AGR / ALH 90, ASV / AHF / AFN 110

Skoda Octavia - AGR / ALH 90, AXR / ATD 100, ASV / AHF 110

VW Bora - AGR / ALH 90, AXR / ATD 100, ASV / AHF 110

VW Golf Mk3 - AHU / ALE / 1Z 90

VW Golf Mk3 Cabriolet - AFN 110

VW Golf Mk4 - AGR / ALH 90, AXR / ATD 100, AHF / ASV 110

VW Beetle - ALH 90, BEW / ATD 100, BSW 105

VW Beetle Cabriolet - AXR 100, BSW 105

VW Passat - AFN 110

VW Polo - ASV / AFN 110

VW Vento - AFN 110

Wavetrac Part Numbers:

10.309.180WK - 10-309-180WK - 10309180WK - 10 309 180 WK
